Solar package AMX 2.38 for inclined roofs with high energy efficiency

Solar package AMX 2.38 – Efficient energy generation for pitched roofs

The AMX 2.38 solar package enables environmentally friendly energy production on pitched roofs and boasts an impressive 14.34 m² surface area and high energy efficiency. The robust and flexible design adapts perfectly to roof pitches between 25 and 60 degrees. This provides you with a reliable energy source that delivers consistent performance even in changing weather conditions.

Benefit from government subsidies

The purchase of the AMX 2.38 solar package is supported by government funding programs, such as the Federal Funding for Efficient Buildings – Individual Measures (BEG EM). With subsidies of up to 30% of the investment costs, the installation becomes particularly cost-effective. In combination with other renovation measures, subsidies can increase to up to 70%, shortening the payback period.

To help you access these types of funding, we provide guidance and advice. This ensures you receive the maximum possible grant and makes your investment even more profitable.

High-quality AMX 2.38 flat-plate collectors

The flat-plate collectors included in the solar package guarantee excellent energy yield thanks to an integrated copper tube absorber. Solar energy is transferred effectively even on cloudy days. Combined with a heat storage system, the generated heat is available to you at any time.

A differential temperature controller optimizes the interaction of the components, maximizing the efficiency of the entire system and enabling precise energy use.

Modern design and durable materials

In addition to its technical performance, the AMX 2.38 solar package impresses with its modern design. The aluminum frame is crafted from a single piece, resulting in first-class stability and durability. The navy blue and black colors are understated and blend harmoniously into various architectural styles.

Thanks to high-quality insulation materials, heat loss remains low even in cold or adverse weather. This means you benefit from consistent energy production all year round.

Easy installation even for renovation projects

Installation of the AMX 2.38 solar package is convenient and efficient. A mounting kit specially developed for pitched roofs simplifies installation. The aluminum components ensure high stability and a long service life of the system.

Detailed installation instructions guide contractors through the entire process. This makes the solar package ideal for renovations or retrofits.

Precise control with the GPS PWM Hydra solar station

The GPS PWM Hydra solar station serves as the central energy management element. It regulates the pump speed using modern PWM technology and distributes the generated heat evenly throughout the system. Additional safety features such as a pressure gauge, a safety valve, and a venting device ensure ease of use and simple maintenance.

The GPS PWM Hydra is particularly robust and designed for operating temperatures up to 110 °C and a working pressure of up to 6 bar. This makes it perfect for continuous use.

Intelligent control with the LOGO PWM solar controller

The LOGO PWM solar controller included in the package offers an intuitive user interface via an LCD display. You can conveniently monitor operating parameters and adjust them if necessary. Thanks to differential control, the controller automatically adjusts the pump speed to the temperature conditions, thus increasing energy efficiency.

An integrated backup system saves all settings and protects them from data loss in the event of a power outage. This ensures your system's functionality is always maintained.

Comprehensive equipment for immediate installation

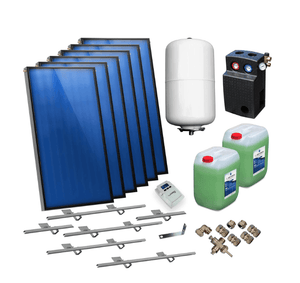

The AMX 2.38 solar package comes with all the necessary components to ensure quick and easy installation. Included in delivery:

• 6 flat-plate collectors (AMX 2.38)
• A connection set for the collectors
• Mounting kit specifically for pitched roofs
• A 35-liter solar expansion tank with bracket
• The GPS PWM Hydra solar station
• The LOGO PWM solar controller
• 2 x 20 liters of solar fluid

All of these components are perfectly coordinated to ensure smooth commissioning and long-term efficiency.

A sustainable investment in your future

With the AMX 2.38 solar package, you're investing in a modern, sustainable, and future-proof energy generation solution. Its high energy efficiency, easy installation, and available subsidy options make this system an excellent choice for your home.

Reduce your energy costs, protect the environment, and benefit from a reliable energy source for years to come. The AMX 2.38 solar package helps you contribute to a greener future!

You also need:

• Solar cable DN16 or DN20 in suitable length
• optional Roof penetration

Download

• Product data sheet Collectors
