Heating rod heating cartridge 1.5 kW - 1½ “with AG

Powerful heating element 1.5 kW heating cartridge for reliable heat

The Elektromet heating cartridge 1.5 kW 11/2" 230 V is the ideal solution for efficient heating in domestic and drinking water storage tanks. With its high-quality stainless steel construction and insulation separation, it ensures reliable heat and durability. Whether for private households or commercial use, this heating cartridge not only offers outstanding performance but also user-friendly handling.

High-quality materials and robust construction

This cartridge heater is made of stainless steel, making it resistant to corrosion and ensuring a long service life. The housing is made of robust white plastic, making the cartridge heater not only functional but also visually appealing. The Alloy 825 heating coil provides additional resistance to high temperatures and stress.

Flexible temperature control for individual comfort

The integrated thermostat housing allows for precise and easily adjustable temperature control within a range of 5 to 75 °C. Additionally, a safety temperature limiter at 93 °C provides reliable protection against overheating. A switch-on hysteresis of 7-10 °C ensures that the water temperature always remains within an optimal range, making the heating process energy-efficient.

Easy installation and compatibility

The heating element has a connection with 1 1/2" It features an external thread (AG) and fits into standard domestic hot water and drinking water storage tanks. Thanks to its compact installation length of 300 mm and an unheated length of 70 mm, the heating cartridge can be integrated quickly and easily. The included 1.5-meter connection cable guarantees a straightforward and direct power supply.

Reliable protection for maximum security

The Elektromet heating element cartridge heater is splash-proof according to IPX4, thus meeting the highest safety standards. Furthermore, the insulation allows for safe use in domestic and drinking water storage tanks. With a maximum operating pressure of 10 bar, the heating element cartridge heater is also ideally suited for demanding applications.

Versatile application area

This cartridge heater is ideal for both private and commercial applications. Whether in households, heating systems, or industry – the Elektromet 1.5 kW 11/2" It impresses with its efficiency and reliable heat supply. It is the perfect choice for optimizing the comfort and functionality of your heating system.

Scope of delivery

The scope of delivery includes everything you need for quick commissioning: The Elektromet heating cartridge 1.5 kW 11/2" With a high-quality seal and detailed operating instructions, nothing stands in the way of easy installation and smooth operation.

Conclusion: Efficient heat of the highest quality

With the Elektromet heating cartridge 1.5 kW 11/2" With the 230 V heating element, you're opting for an efficient, durable, and versatile solution for your hot water heating needs. High-quality materials, sophisticated safety features, and precise temperature control make this heating element a first-class choice. Rely on quality and convenience – with the Elektromet heating element.

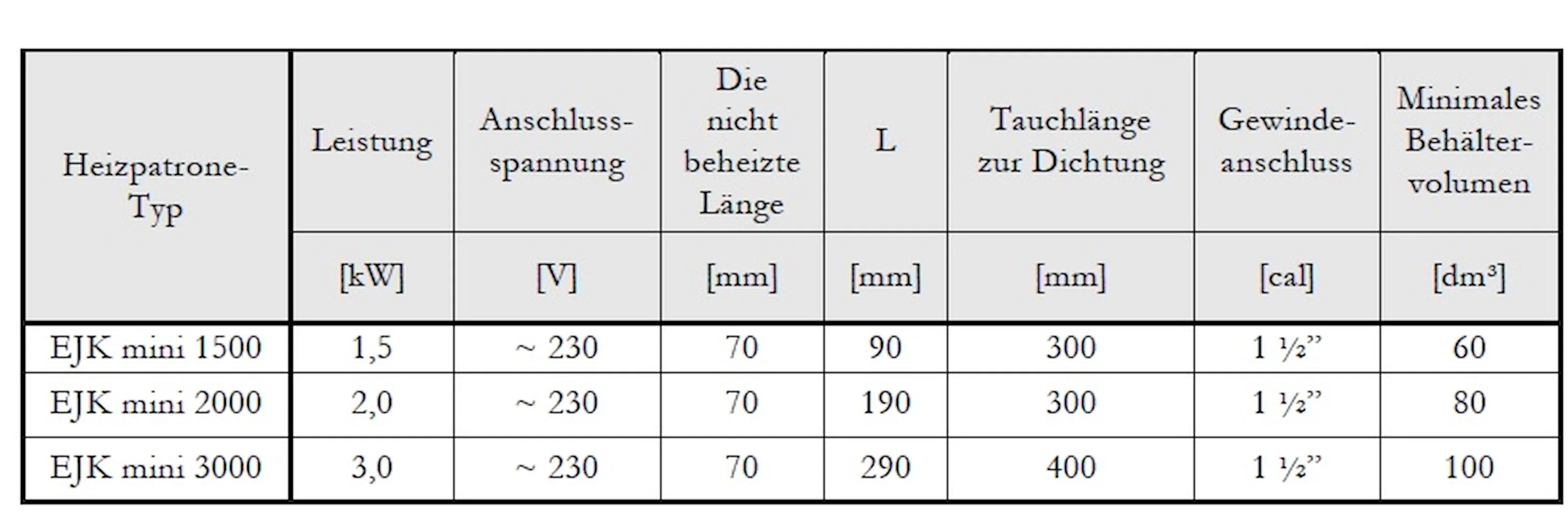

Technical data

• Heating output: 1.5 kW
• Temperature range: 5-75°C
• Switch-on hysteresis: 7-10°C
• Installation length: 300 mm
• Unheated length: 70 mm
• Safety temperature limiter: 93°C
• Connection: 1 ½" AG
• Max.Operating pressure: 10 bar
• Protection class: IPX4
• Heating coil material: Alloy 825
• Housing material: plastic, white
• Power supply: 230V/16A, single-phase
• Connection cable: 1.5 meters with Schuko plug
