Solar package AMX 2.51 complete package for sustainable hot water preparation

Solar package AMX 2.51 – Efficient energy generation for pitched roofs

The AMX 2.51 solar package enables sustainable and environmentally friendly energy production on pitched roofs. With an impressive surface area of 7.59 m² and high energy efficiency, it is ideally suited for harnessing solar energy. The robust construction easily adapts to roof pitches between 25 and 60 degrees and delivers consistent performance even in changing weather conditions. An ideal choice for environmentally conscious homeowners who want to benefit from a reliable energy source.

Benefit from government subsidies

The installation of the AMX 2.51 solar package is made easier by attractive government subsidy programs. For example, you can benefit from the Federal Funding for Efficient Buildings – Individual Measures (BEG EM), which provides subsidies of up to 30% of the investment costs. These subsidies can even increase to up to 70% when combined with other renovation measures, significantly reducing the payback period.

To make it easier for you to access these subsidies, we offer comprehensive guidance and advice. This ensures you receive the maximum subsidy and your investment becomes even more profitable. Take advantage of this opportunity to reduce your energy costs in the long term!

High-quality AMX 2.51 flat-plate collectors

The flat-plate collectors of the AMX 2.51 solar package, thanks to a copper tube absorber, ensure above-average energy yield. Even on cloudy days, solar radiation is efficiently converted into usable energy. Combined with a heat storage system, the generated heat is available to you at any time, significantly increasing the comfort of your home.

A differential temperature controller optimizes the interaction between the individual system components, maximizing efficiency. This ensures optimal use of every kilowatt-hour generated and minimizes energy losses.

Modern design and durable materials

The AMX 2.51 solar package impresses not only with its technical performance but also with its elegant, contemporary design. The one-piece aluminum frame ensures first-class stability and durable durability. Available in navy blue and black, these can be harmoniously integrated into a variety of architectural styles.

In addition, high-quality insulation materials protect the system from heat loss, even in low temperatures or adverse weather conditions. This ensures consistently high energy efficiency throughout the year.

Easy installation even for renovation projects

The AMX 2.51 solar package is designed to be simple and time-saving. A special mounting kit for pitched roofs makes installation straightforward. The aluminum components used ensure a stable construction that retains its functionality over the long term.

Thanks to detailed installation instructions, even less experienced craftsmen can safely install the solar system. This makes the solar package particularly attractive for renovations and retrofit projects.

Precise control with the GPS PWM Hydra solar station

One of the core components of the package is the GPS PWM Hydra solar station. This innovative control unit uses modern PWM technology to optimize pump speed, ensuring even distribution of the generated heat throughout the system. Additional safety features such as a pressure gauge, safety valve, and venting device make maintenance and operation particularly user-friendly.

The solar station is designed for high operating temperatures of up to 110 °C and working pressures of up to 6 bar, underscoring its robustness and durability. This makes it ideal for permanent use in your home.

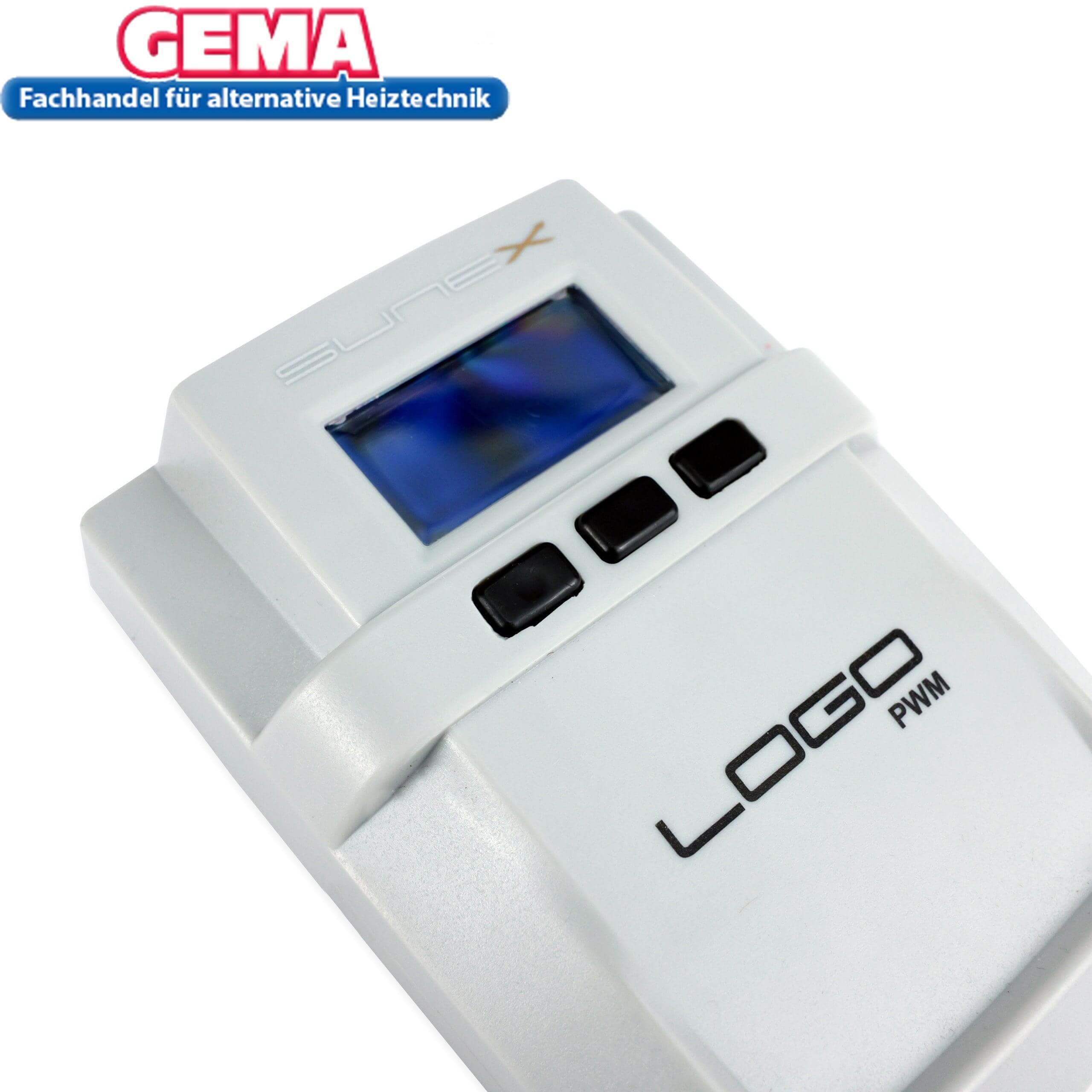

Intelligent control with the LOGO PWM solar controller

The LOGO PWM solar controller offers a user-friendly interface via an easy-to-read LCD display. This controller allows you to easily monitor operating parameters and adjust them as needed. The intelligent differential control automatically adjusts the pump speed to current temperature differences, further increasing energy efficiency.

A useful backup system saves all settings and protects them from data loss in the event of a power outage. This way, your system always remains functional and you don't have to worry about unforeseen interruptions.

Comprehensive equipment for immediate installation

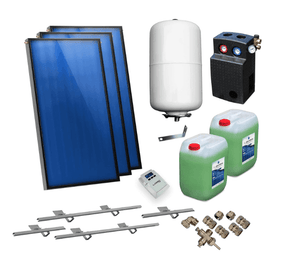

The AMX 2.51 solar package includes everything you need for a smooth installation. The individual components are perfectly coordinated to ensure high efficiency and reliability. The scope of delivery includes:

• 3 flat-plate collectors (AMX 2.51)

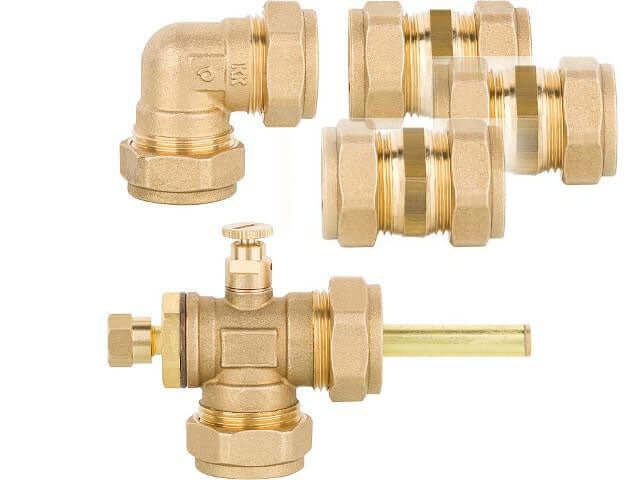

• A connection set for the collectors

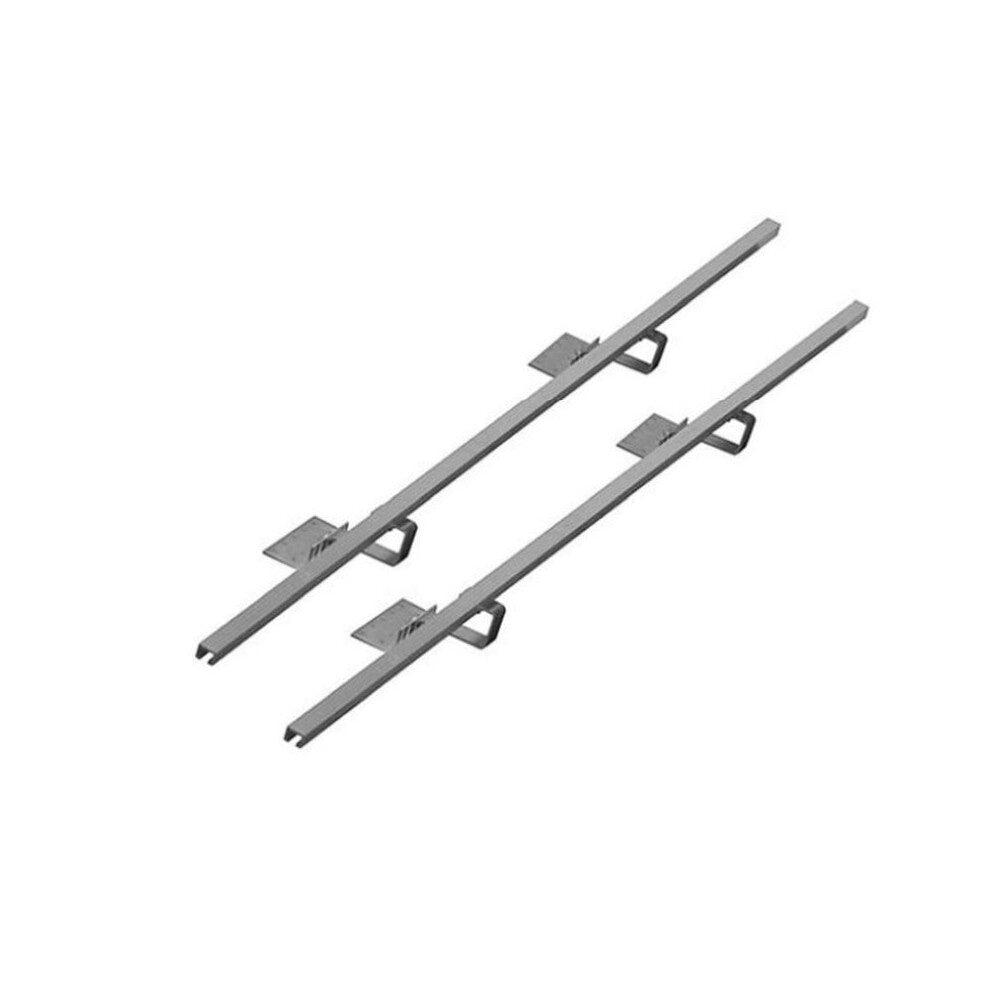

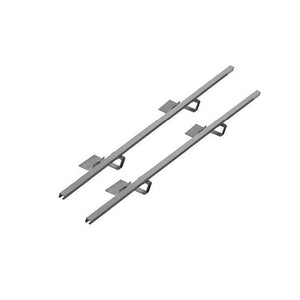

• A mounting kit specifically for pitched roofs

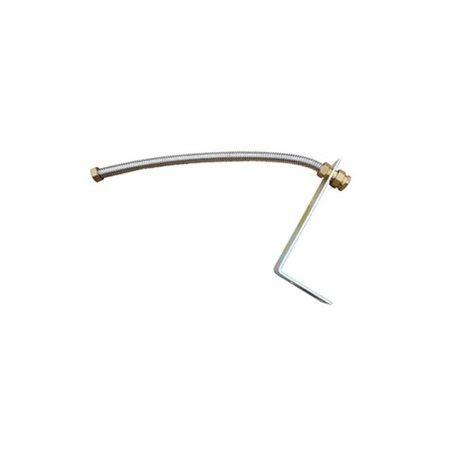

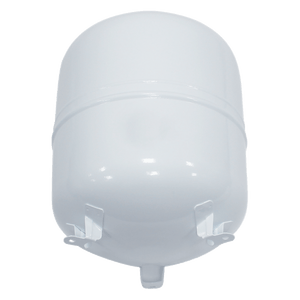

• An 18-liter solar expansion tank with bracket
• The GPS PWM Hydra solar station
• The LOGO PWM solar controller

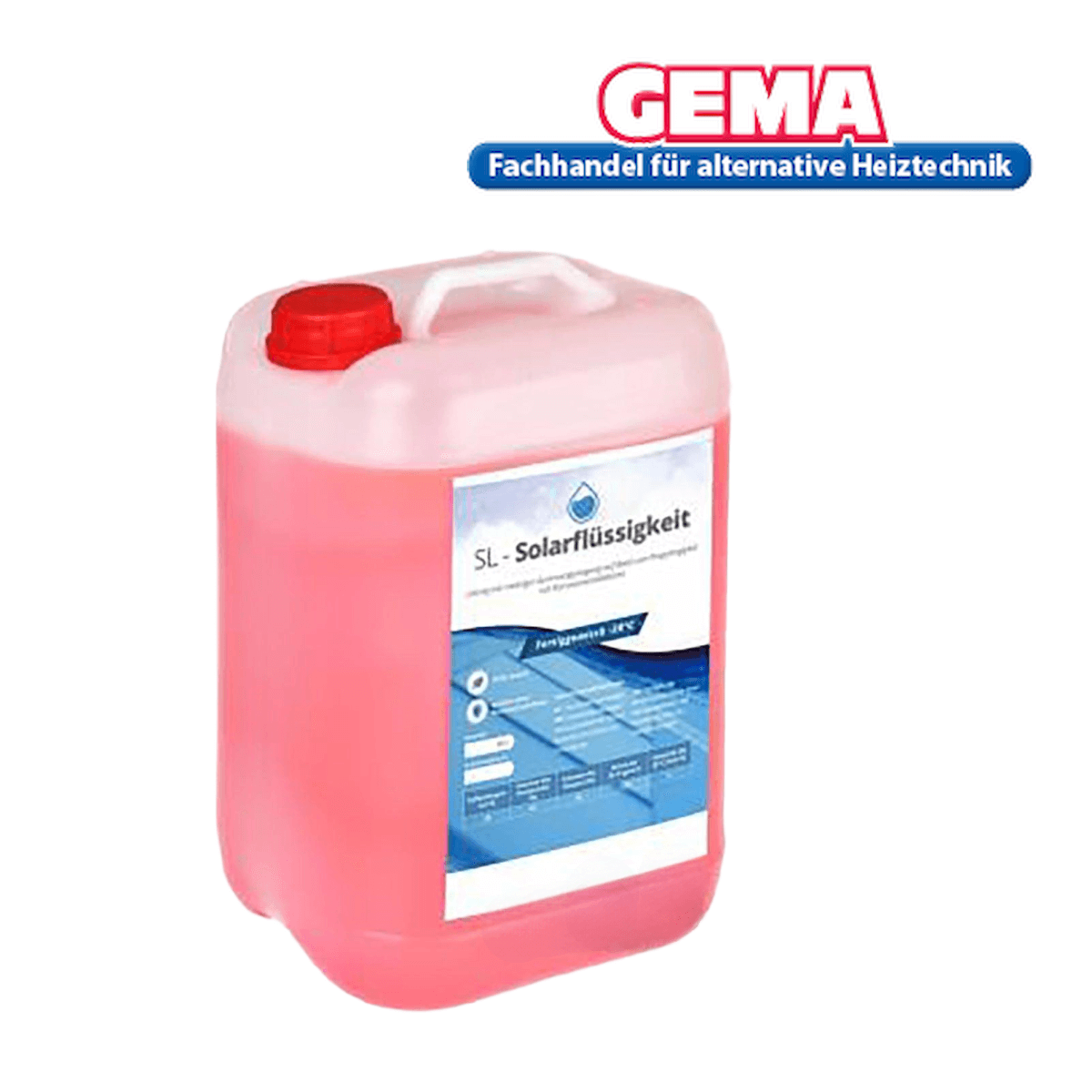

• 2 x 20 liters of solar fluid

This comprehensive feature set guarantees quick and easy setup. Every single component has been carefully selected to ensure long-term performance and satisfaction.

A sustainable investment in your future

With the AMX 2.51 solar package, you're choosing a modern, environmentally friendly, and future-proof energy generation solution. Its high energy efficiency and easy installation make this system the ideal choice for any property. At the same time, you'll reduce your energy costs and make a valuable contribution to environmental protection.

Invest in your future and benefit from a reliable and sustainable energy source. With the AMX 2.51 solar package, you'll get the most out of your solar system and actively contribute to a greener world!

You also need:

• Solar cable DN16 or DN20 in suitable length
• optional Roof penetration

Download

• Product data sheet Collectors
