Weathering heating control Gema Control 920 with PWM function

Weather-dependent heating control - Gema Control 920

The weather-compensated Gema Control 920 (Ecomax) heating control combines state-of-the-art technology with ease of use and sustainability. This innovative device has been sold over 700 times and has impressed with its reliability and functionality for more than six years. Thanks to touchscreen technology, the control is intuitive to use and offers comprehensive customization options for heating curves, time intervals, and temperatures. The Gema Control 920 also supports the integration of solar systems and the control of multiple heating sources.

Innovative functions for your heating system

The heart of the Gema Control 920 is its ability to efficiently link various heating components and systems. The PWM function allows for reliable operation of modern solar high-efficiency pumps. The controller also allows for the control of up to two heat generators—such as a water-bearing fireplace and a gas or oil boiler—as well as a solar thermal circuit. This versatility ensures optimal energy utilization and heating performance.

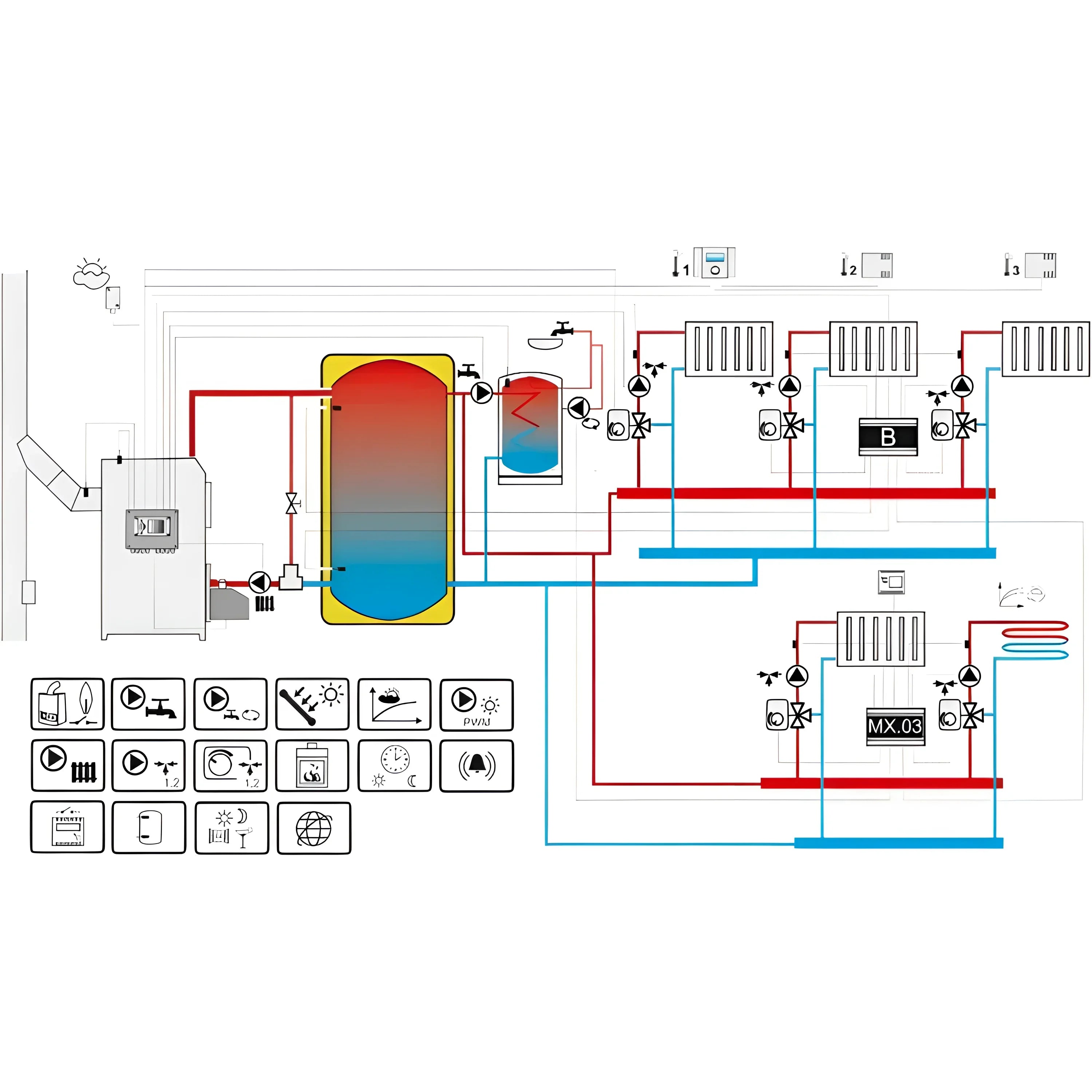

Also worth mentioning are the pre-installed hydraulic diagrams, which enable quick and easy setup. Thanks to automatic component recognition, configuration takes place in plug-and-play mode. The Gema Control 920 also offers password-protected child safety features and intuitive menu navigation for user-friendly operation.

Remote control with the ecoNET 300 Internet module

With the additional ecoNET 300 module, the Gema Control 920 expands its functionality and becomes ready for remote control. You can conveniently control your entire heating system via PC, tablet, or smartphone. The user-friendly app and web access allow you to adjust temperatures, set heating curves, and monitor your system from anywhere.

Modern design and extensive compatibility

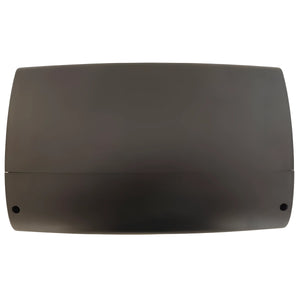

The Gema Control 920 is the further development of the successful Gema Control 850 and 890 universal controllers. The improvements range from a slimmer and more aesthetically pleasing installation box to comprehensive functional innovations. While the touchscreen display is available in white as standard, a black version can be ordered upon request.

A particularly practical feature is the expandable control system: Additional heating circuits and thermostats can be connected via the B module. This allows the system to grow with the individual needs of your home.

Scope of delivery and easy installation

The Gema Control 920 comes as a complete package and includes everything you need for installation and commissioning: the main unit with touchscreen, a variety of temperature sensors, and a power plug. The menu language can be flexibly set to German or English, ensuring quick and trouble-free operation.

Thanks to the clear and logical menu navigation and intelligent automatic component recognition, installation is child's play. With plug-and-play functionality, your heating control system will be ready for use in no time.

Advantages of the Gema Control 920 at a glance

The Gema Control 920 offers numerous advantages and features that make it one of the most advanced weather-compensated heating controls available. Here are some highlights:

Advantages of the Gema Control 920

The Gema Control 920 combines state-of-the-art heating technology with high user-friendliness and adapts flexibly to your individual requirements. This allows you to optimize your heating control while ensuring comfort and energy efficiency in your home.

• With PWM function for the latest solar high-efficiency pumps
• 2 mixed heating circuits (expandable to 5 via B module)
• 1 unmixed heating circuit (expandable to 3 via B module)
• 1 domestic hot water charging pump and circulation pump (time control)
• 2 heat generators, z.B. water-bearing fireplace, and gas or oil boilers
• 1 solar circuit (solar thermal)
• Buffer storage control option for connecting 2 additional room thermostats (expandable to 4 via B-module)
• Main unit with touch screen also functions as a room thermostat
• Parental controls with password
• Intuitive and fast control element with large color touch display
• Preset hydraulic plans for many applications or plug and play
• Menu language can be set to German or English
• Plug & Play - automatic detection of connected components
• Remote control via the Internet possible with Eco Net 300

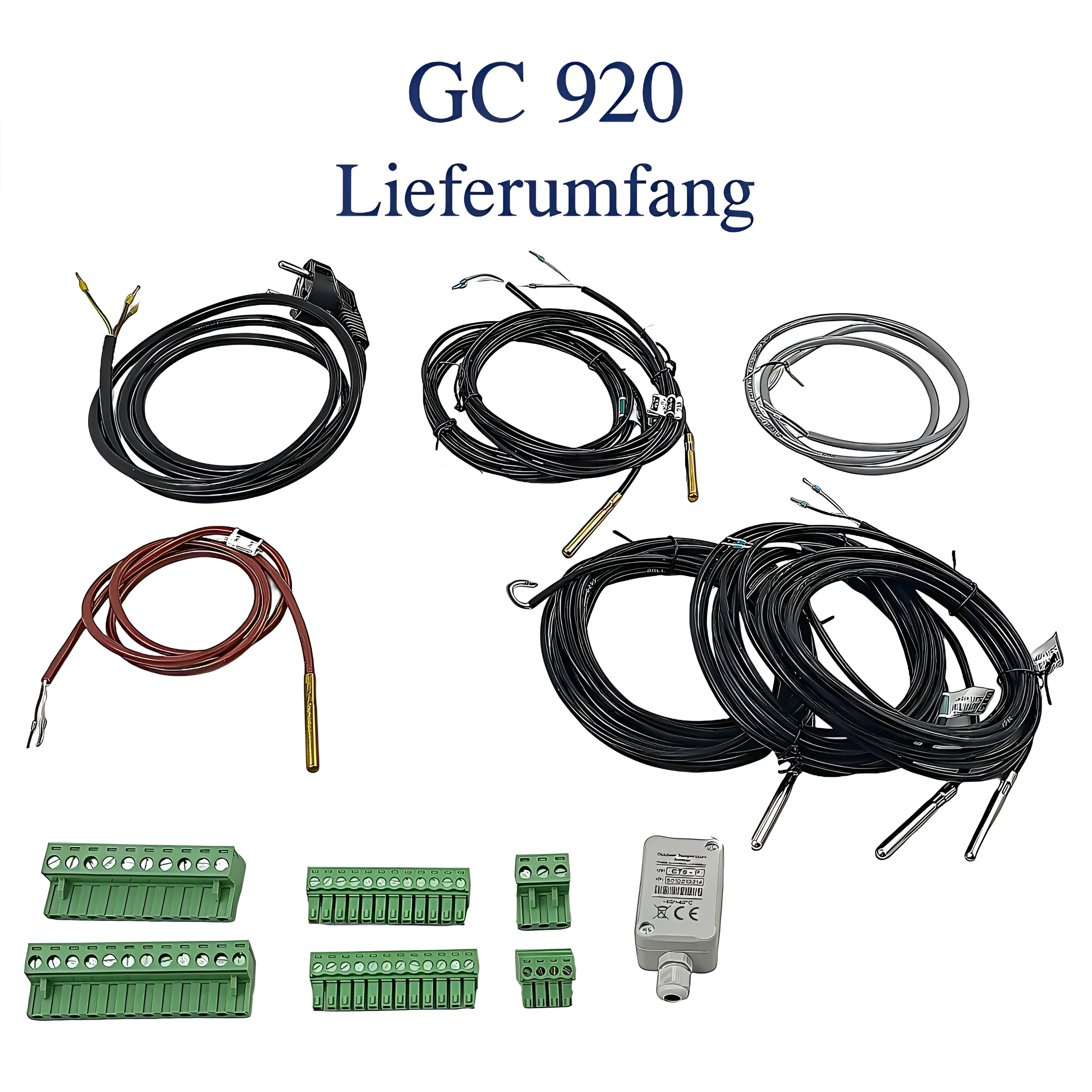

Scope of delivery

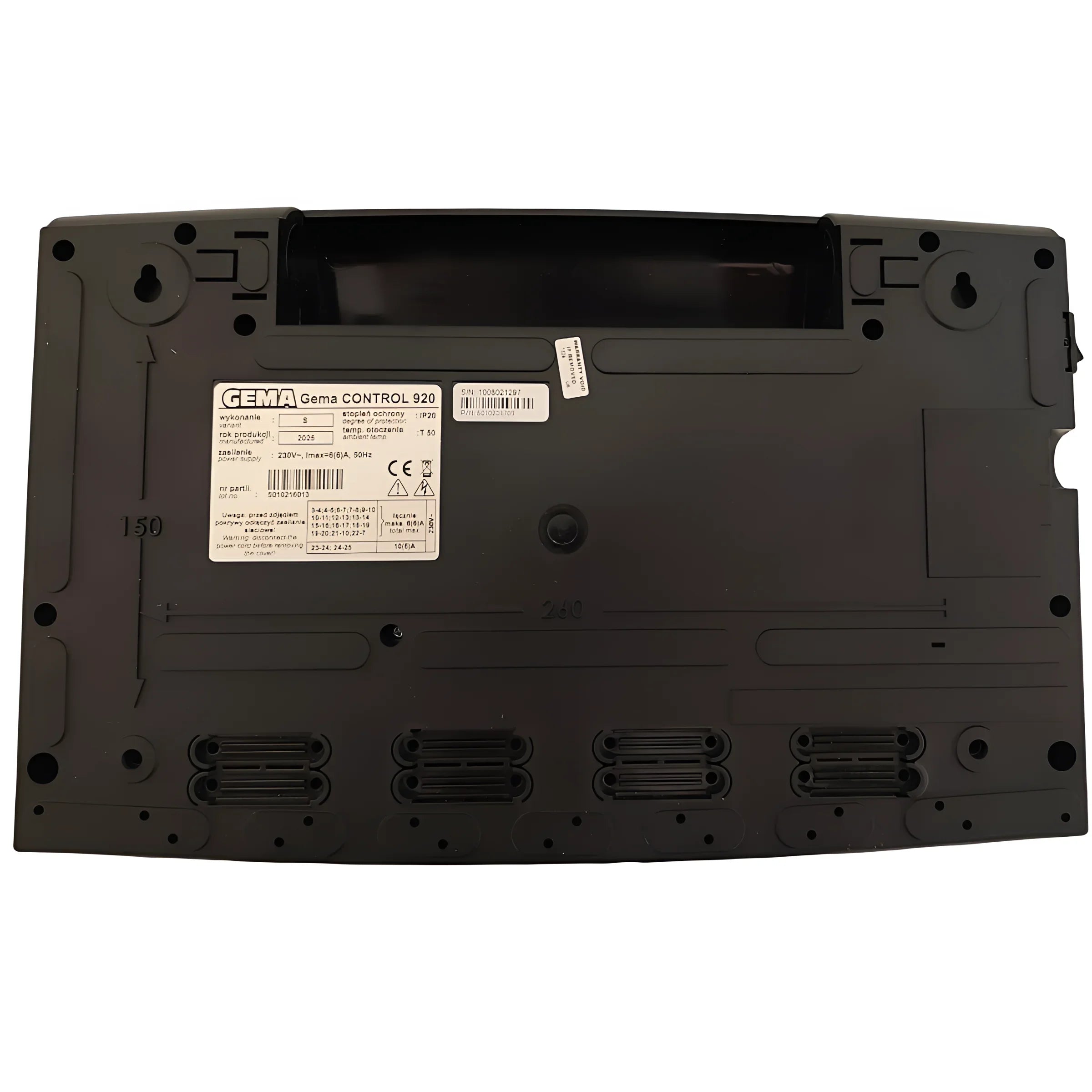

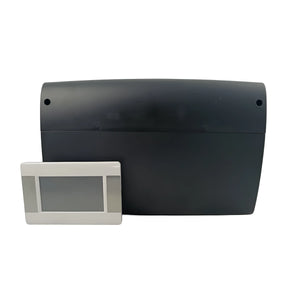

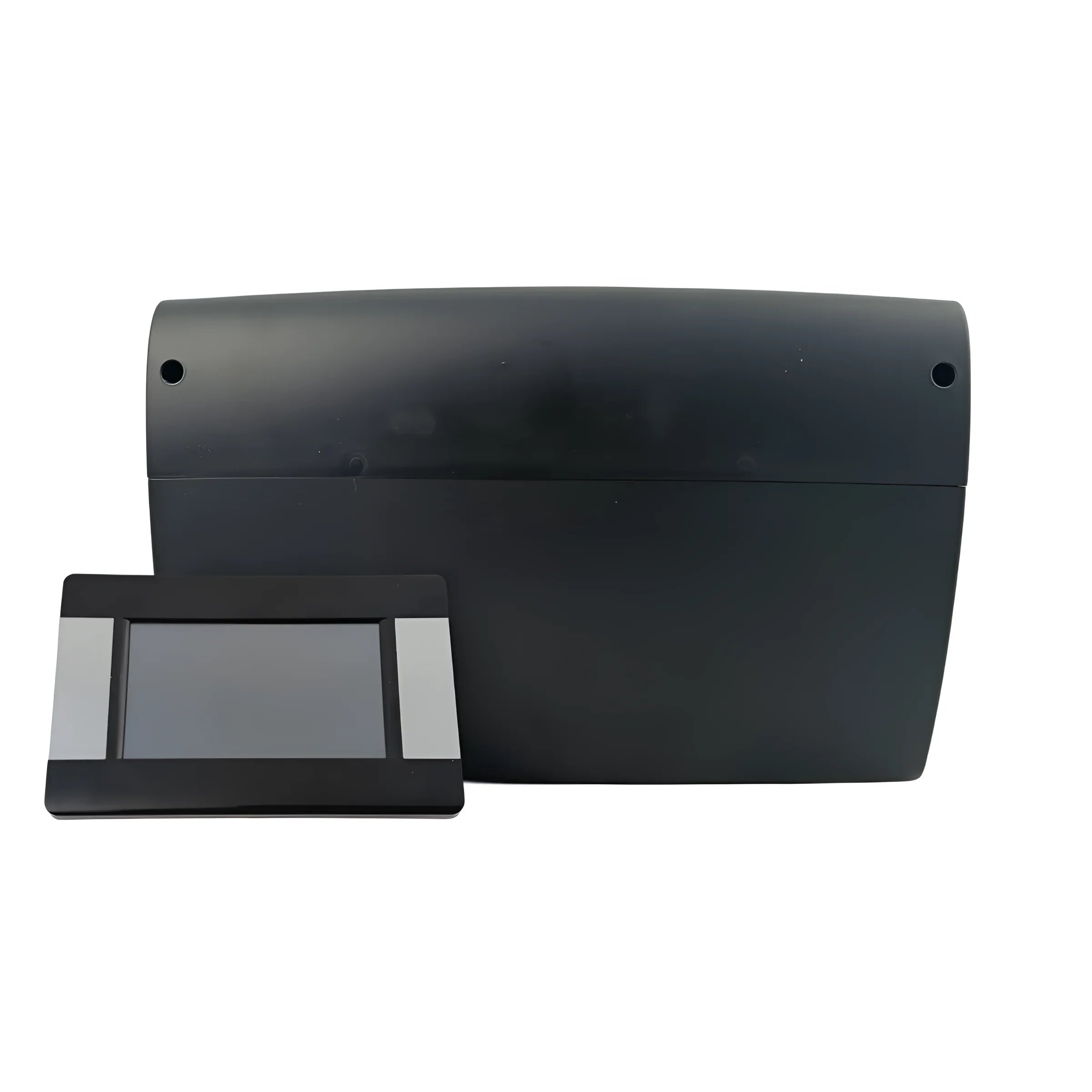

• 1 x central unit Gema CONTROL 920 with PWM function

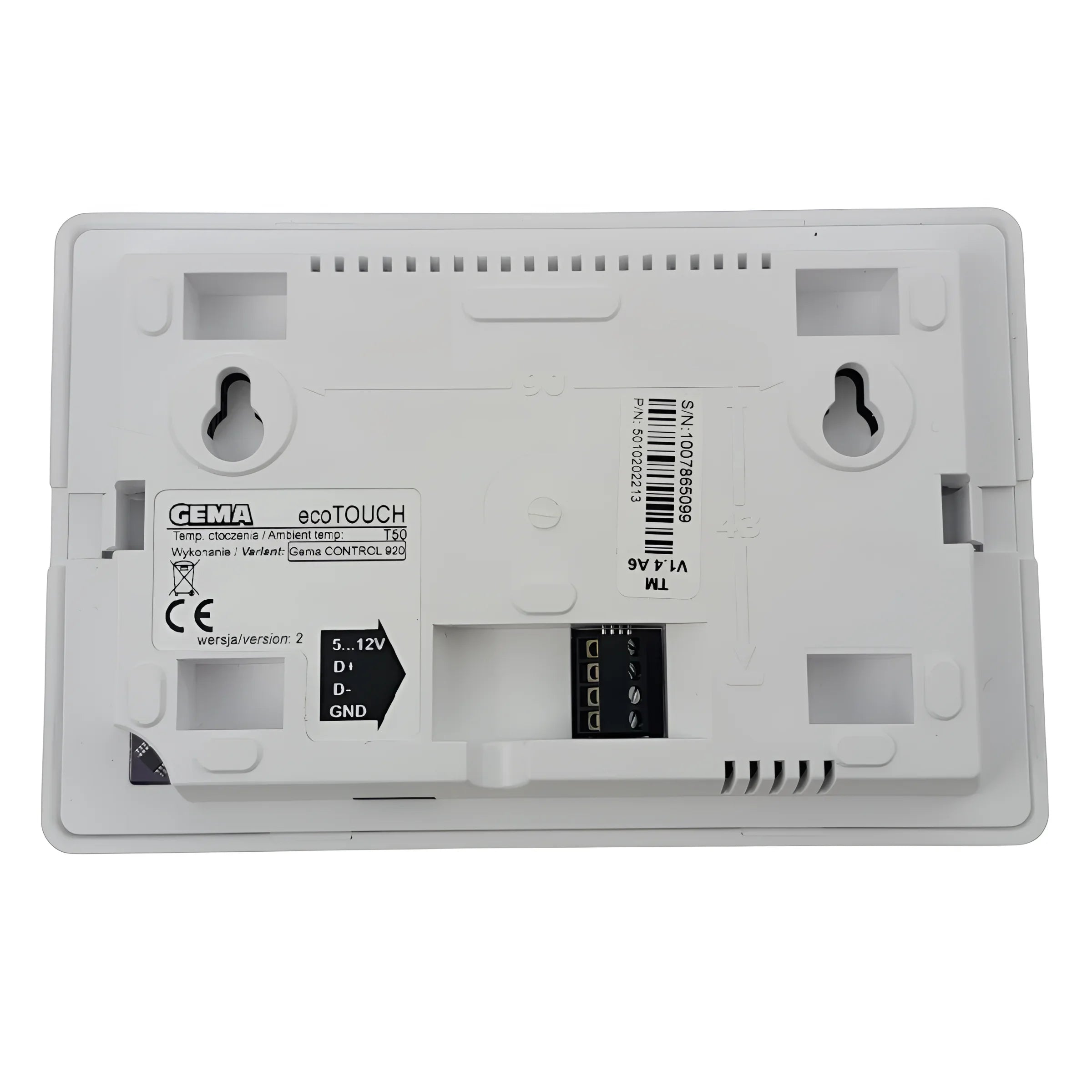

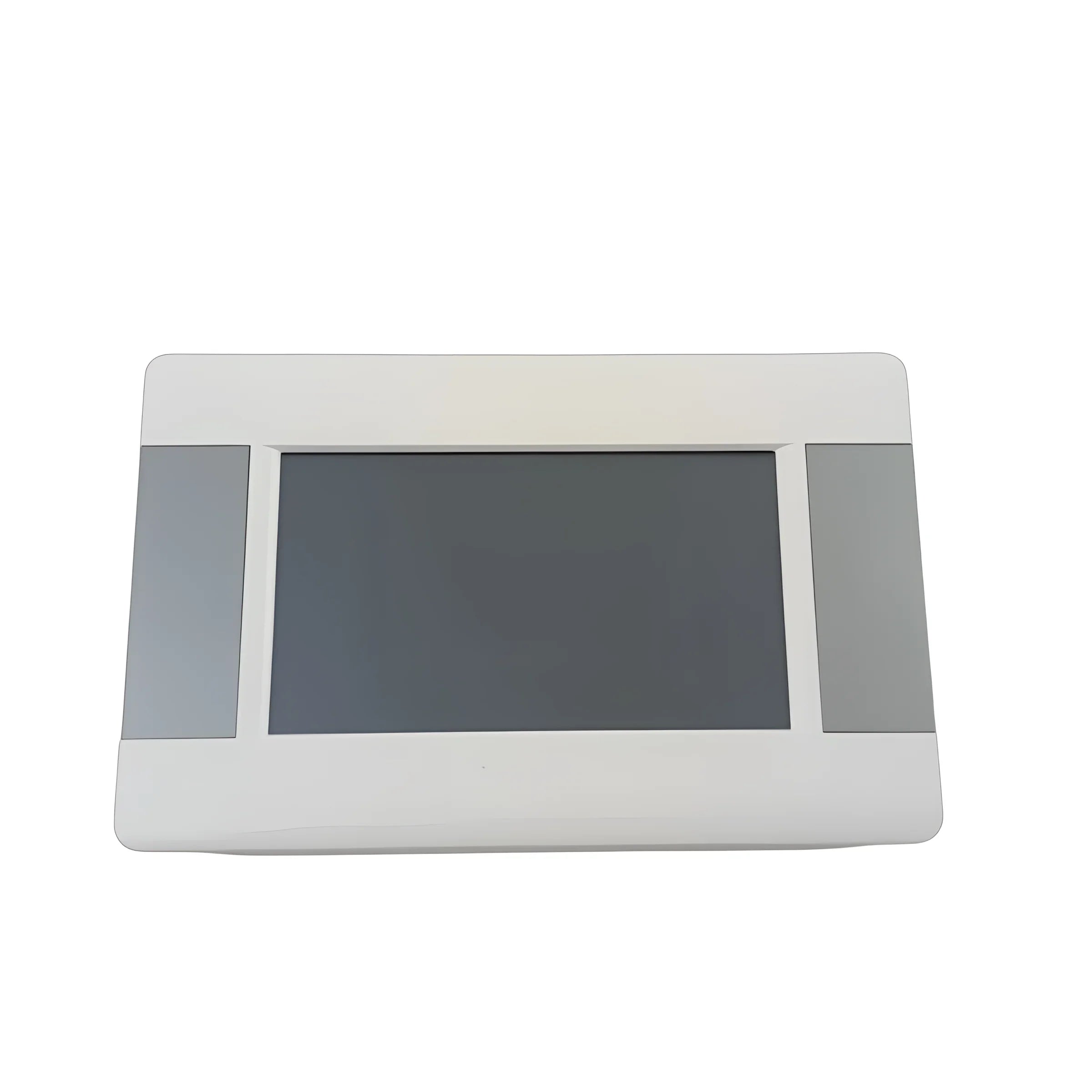

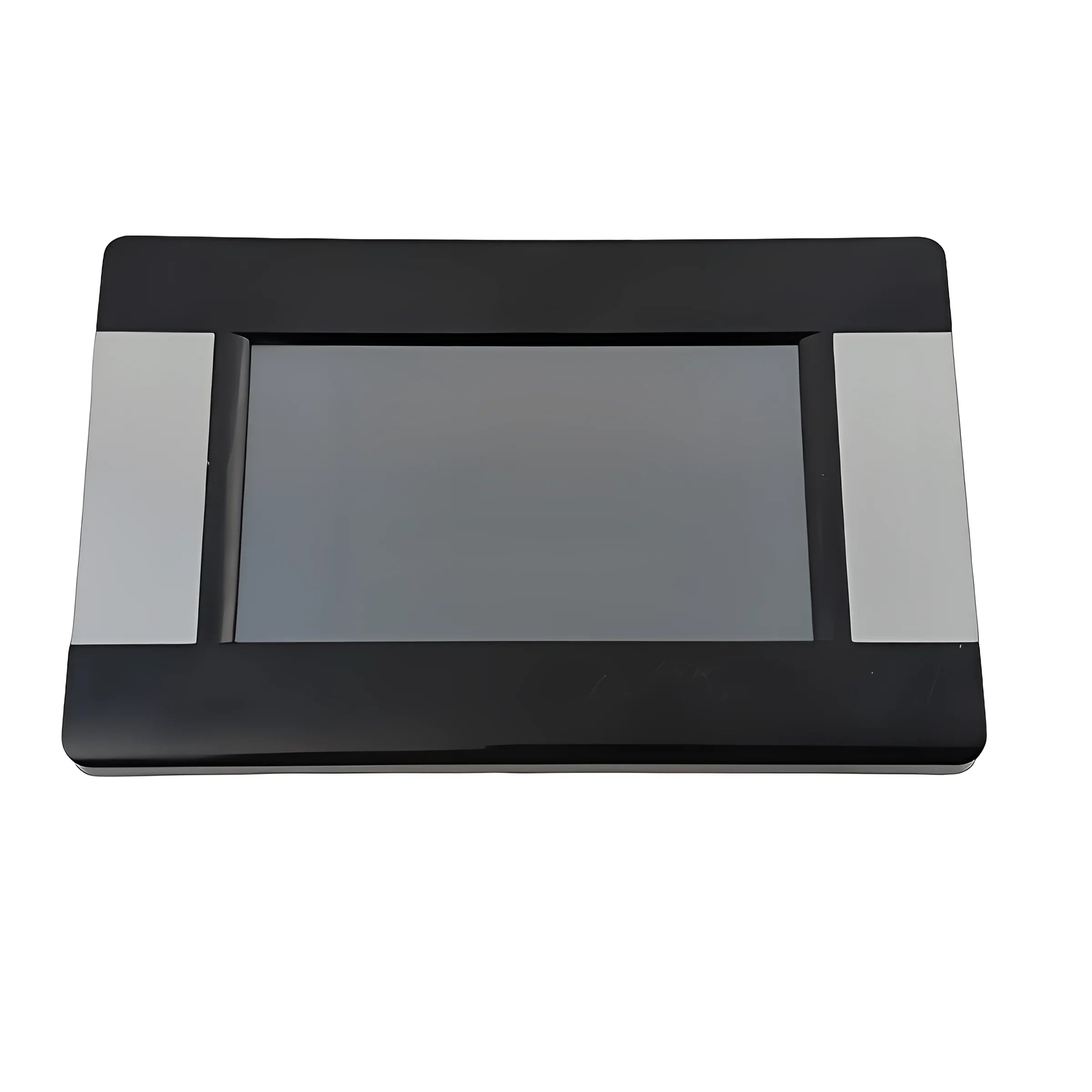

• 1 x touchscreen display eco TOUCH
• 1 x outdoor sensor CT6-P without cable
• 1 x collector sensor PT1000/B type CT6 - 1 m cable
• 1 x solar storage sensor PT1000 type CT6 - 2 m cable
• 4 x temperature sensors NTC 10K type CT10 - 2 m cable
• 1 x display connection cable
• 1 x power plug
• Menu language can be set to German or English
