Name: Air-water heat pump TERMA
Brand: Elektromet
SKU: LWWT18400
Price: 3481.53 EUR
Availability: InStock

Luft - Wasser - Wärmepumpe TERMA - GEMA Shop

Air-water heat pump TERMA

by Elektromet

SKU LWWT18400

2.531,68 € - 3.481,53 €

3.481,53 €

2.531,68 € - 3.481,53 €

3.481,53 €

Availability:

Low stock

Availability:

Low stock

Availability:

Low stock

Die Produktbeschreibung wird aktuell ergänzt. Bei Fragen zu Einsatzbereich, Auslegung oder Kompatibilität hilft dir unser Fachteam gerne weiter.

Fachhandel für Heiztechnik

Technische Beratung für Heiztechnik & Systemkomponenten
Sichere Zahlung
Paket- oder Speditionsversand je nach Produktart

Quantity

Description

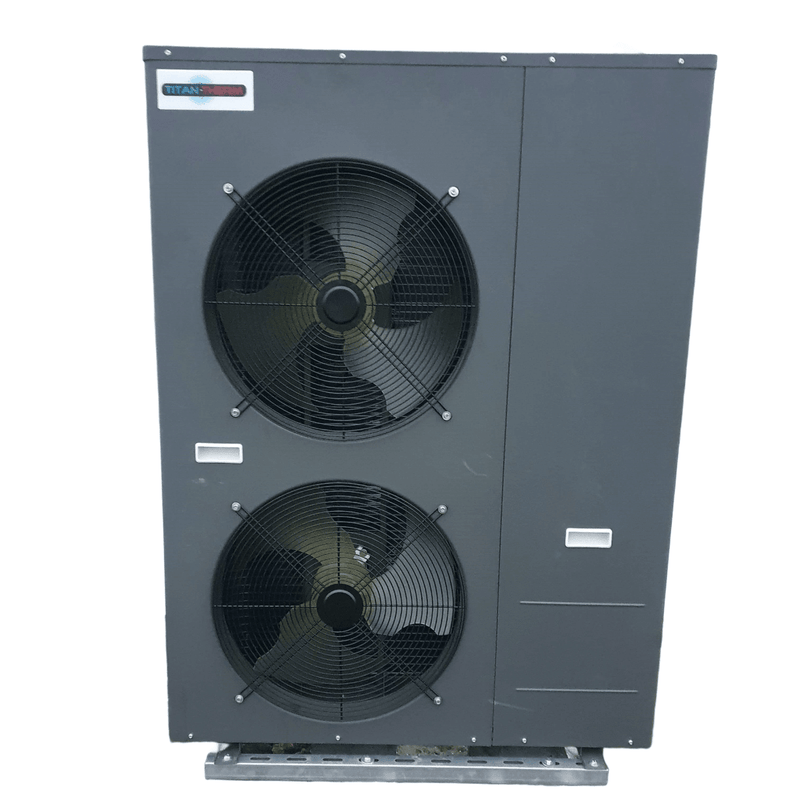

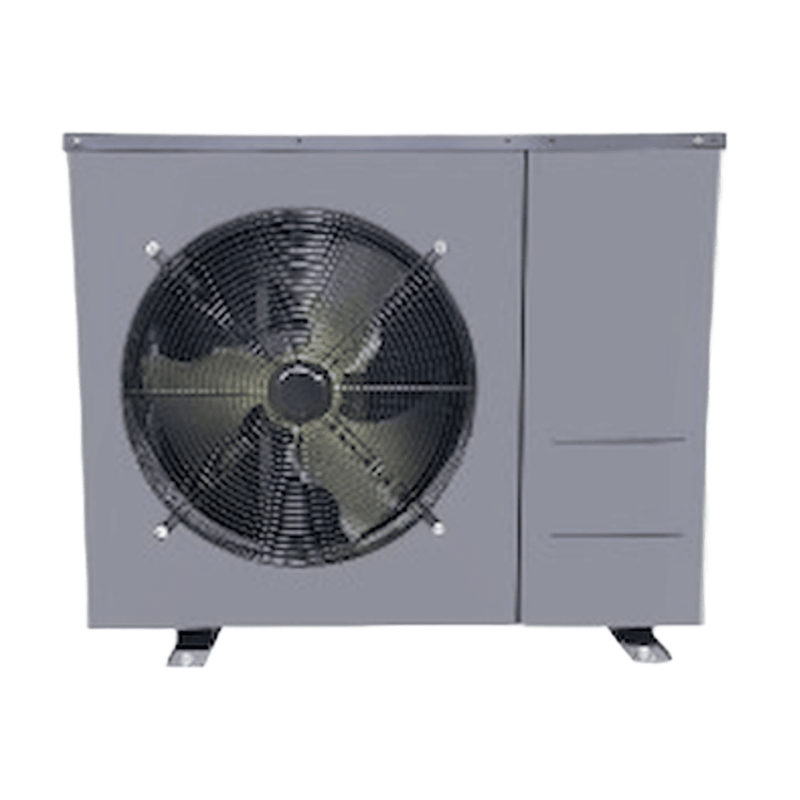

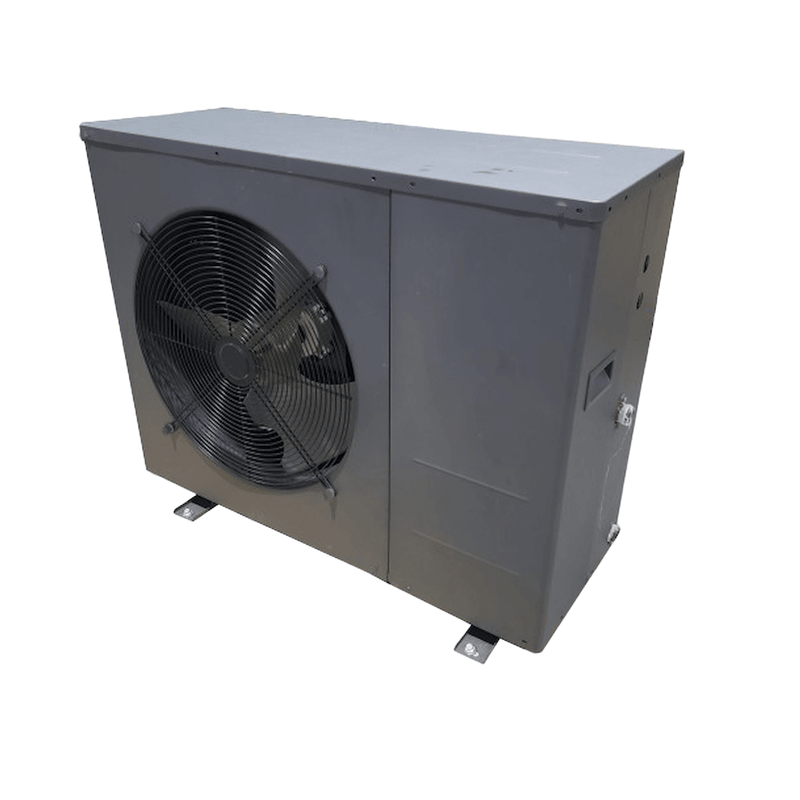

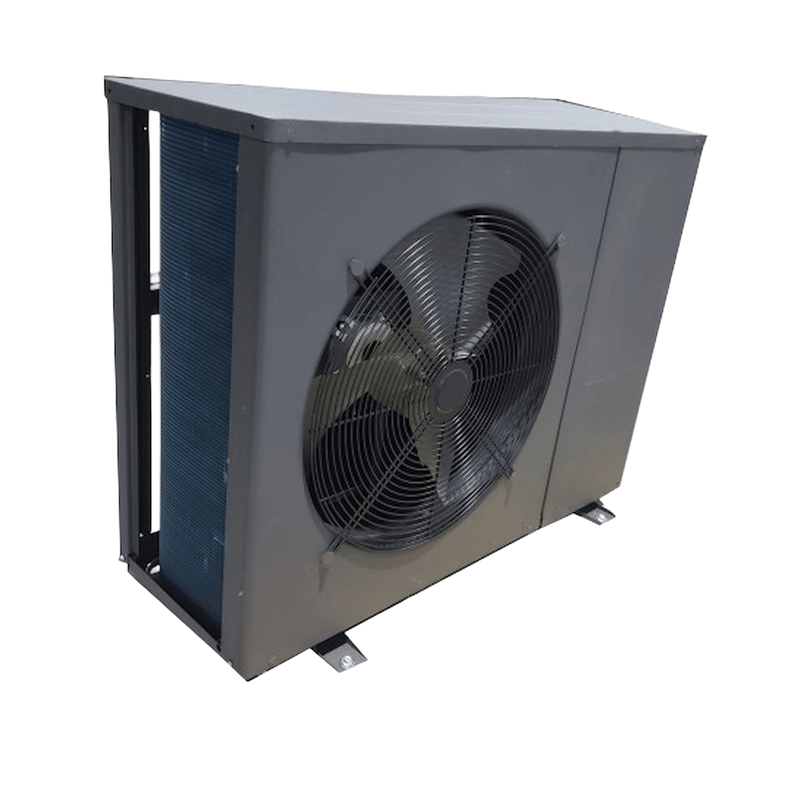

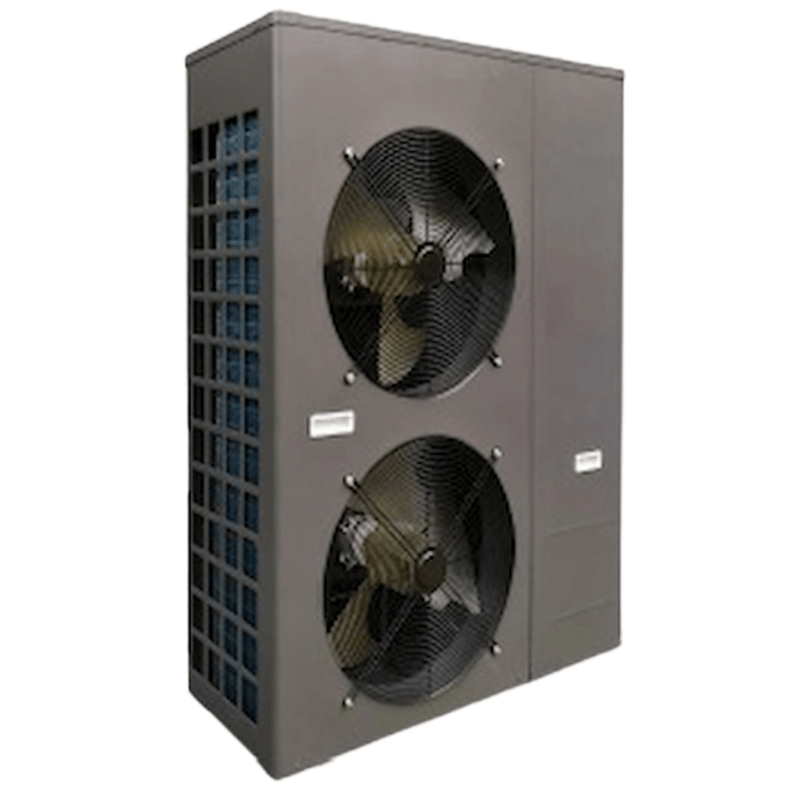

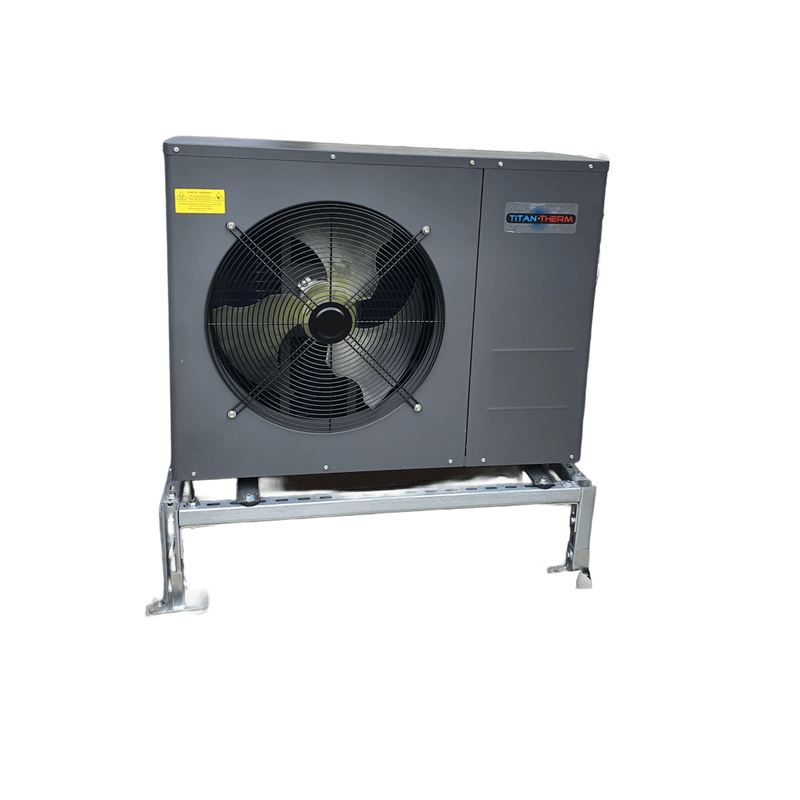

Air-to-water heat pump

Heat pump for heating and domestic hot water, type TERMA

An air-to-water heat pump is able to extract heat from the ambient air even at low temperatures of up to minus 20 degrees Celsius.

This is because even at this temperature the refrigerant used evaporates.

One Air-to-water heat pump It uses ambient air as a heat source to heat an entire building. During operation, a built-in fan actively draws in air and directs it to a heat exchanger, the evaporator. A refrigerant circulates within this evaporator, which, due to its thermal properties, changes its state of matter even at low temperatures. When it comes into contact with the incoming warm outside air, it heats up until it begins to evaporate. Since the temperature of the resulting vapor is still relatively low, it flows to an electrically driven compressor. This increases the pressure, which also raises the temperature. Once the refrigerant vapor has reached the desired temperature, it flows to the next heat exchanger, the condenser. Here, it transfers its heat to the heating system and condenses.

heat pump

The heat recovered in this way can be used for heating or hot water preparation. Before the cooled refrigerant can be reheated and compressed, it first flows through an expansion valve. This reduces the pressure and temperature to their initial levels, allowing the cycle to be repeated.

The TERMA air-to-water heat pump is the ideal solution for your home.

environmentally friendly
energy-efficient
eligible for funding

Technical data: Air-to-water heat pump

Monoblock type	Model BLN-012TA1	Model BLN-018TA1	BLN-018TA3
Nominal voltage	220-240V/50 Hz	220-240V/50 Hz	400V/50 Hz
Performance parameters at A7/W35
Rated heat output (kW)	12	18	18
Power consumption (kW)	2.6	3.81	3.81
COP 4.62	4.62	4.72	4.72
Performance parameters at A7/W55
Rated heat output (kW)	10	15	15
Power consumption (kW)	2.82	4.08	4.08
COP 3.54	3.54	3.68	3.68
Cooling capacity parameters for A35/W7
Cooling capacity (kW)	8	14	14
Power consumption (kW)	2.25	3.87	3.87
EER coefficient	3.56	3.62	3.62
Max.Power consumption (kW)	5.3	6.8	6.8
Rated current (A)	32	32	32
Refrigerant	R32	R32	R32
Net weight (kg) 75	75	147	147
Dimensions (W x D x H) (mm)	1005x370x800	1077x377x1460	1077x377x1460
Sound power level (dB)	58	71	71
compressor	Inverter from Toshiba	Panasonic inverter	Panasonic inverter
Outdoor temperature range	-30°C to +48°C	-30°C to +48°C	-30°C to +48°C
