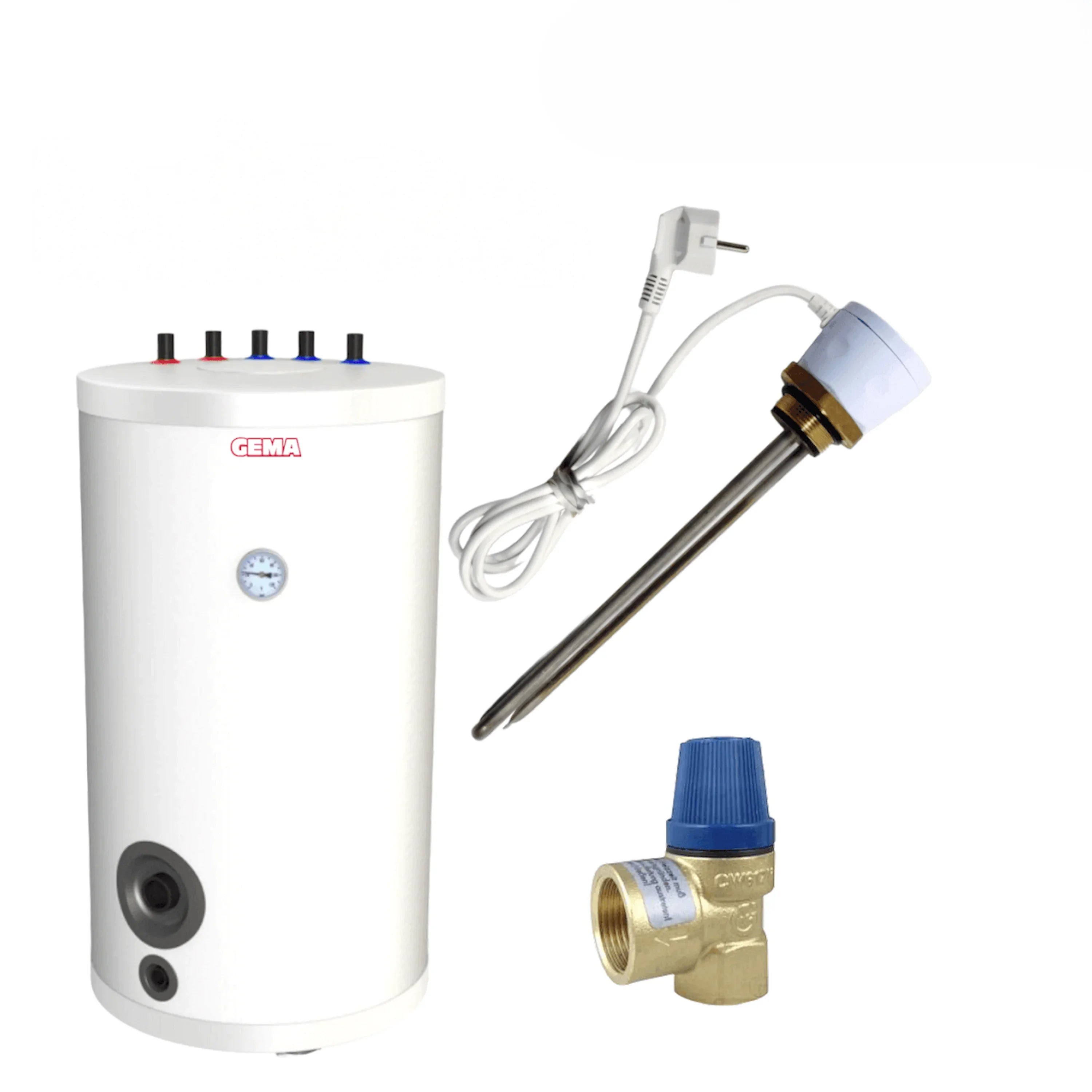

Hot water storage tank 150 liters with 1.5 kW heating element
Product description
The hot water storage tank with a capacity of 150 liters and integrated heat exchanger offers a central solution for the safe generation of hot water. It is ideally suited for heating drinking or process water in combination with a thermal solar system, a boiler, or via a photovoltaic system to heat efficiently with a retrofittable electric heating element.
The high-quality corrosion protection provided by the enamel coating and a large magnesium anode guarantees long-term durability. The combination of state-of-the-art technology and robust construction makes this hot water tank a reliable choice for a wide variety of heating systems.
Advantages of the hot water tank
The hot water tank impresses with a very good price-performance ratio and offers high hot water comfort for a demand of 100 to 180 liters. The highly efficient heat exchanger ensures maximum energy yield from the supplied heat source.
The versatile connection options, including a circulation connection and a separate connection for the electric heating element, guarantee flexible integration into a wide range of systems. In addition, the firmly foamed polyurethane insulation actively helps minimize heat loss.
Technical data of the hot water tank
With a volume of 150 liters, a heat exchanger surface area of 1.4 m², and an integrated heat exchanger content of 6.1 liters, the tank offers well-thought-out technology. The connection options for flow, return, and circulation are designed for 3/4 inch male thread, while the system easily withstands a maximum operating pressure of 6 bar.
The hot water tank is designed for operating temperatures of up to 95 °C in the tank or 100 °C at the heat exchanger and has a heat output that guarantees a loss of only 36 watts. The integrated insulation also enables a compact design that easily fits into various installation spaces.

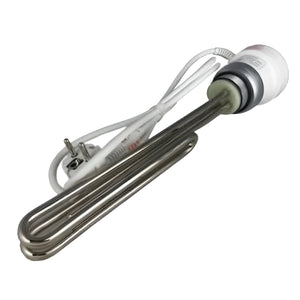

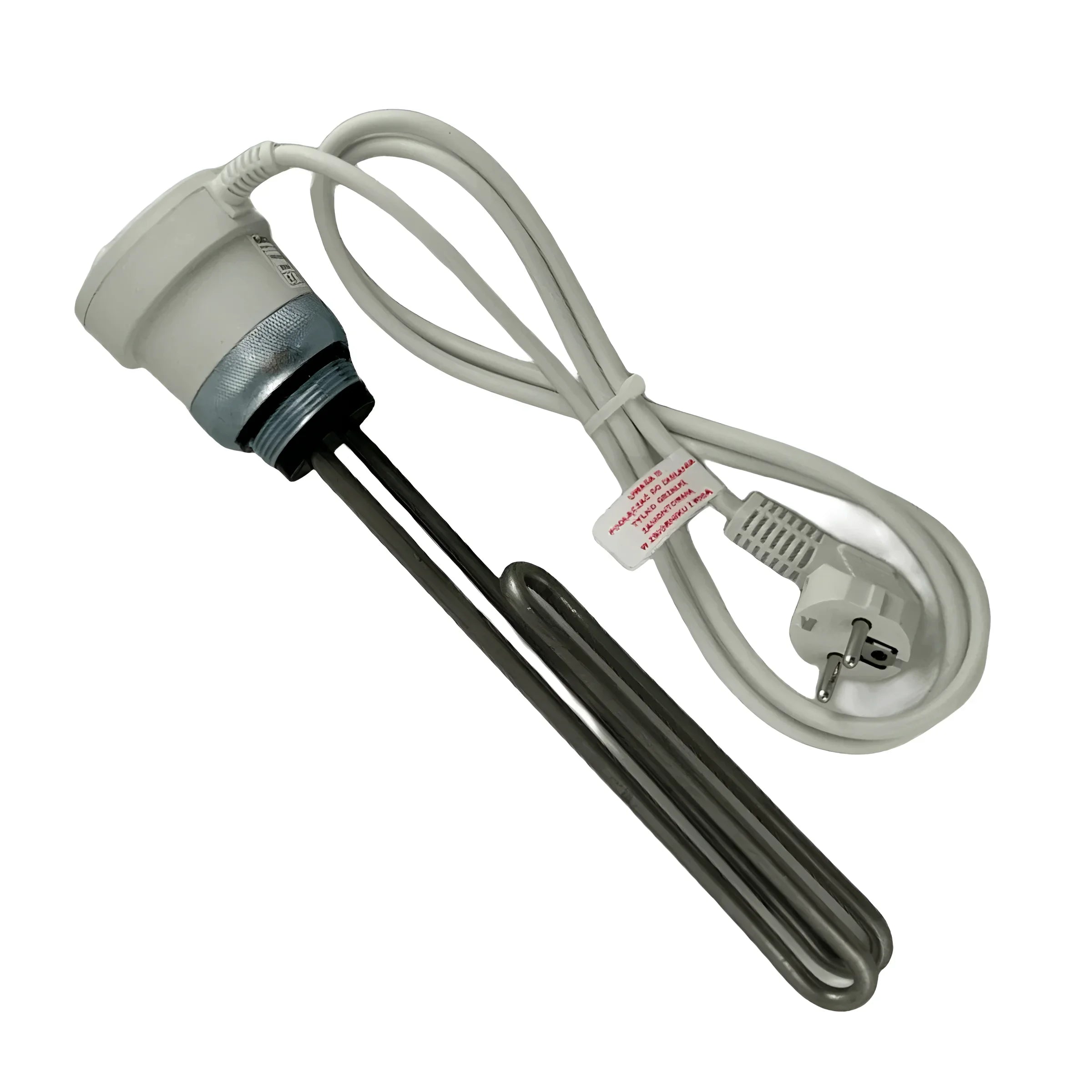

Heating element – performance features
The integrated electric heating element with an output of 1.5 kW is designed as an ideal auxiliary device to support the system when needed, independently of external heat sources. Thanks to its robust construction made of high-quality stainless steel, it ensures lasting and reliable performance.
The heating element features a clear temperature controller that enables precise control of the water temperature in the range of 5°C to 75°C. This is also supported by a switching hysteresis that not only ensures constant temperatures but also avoids unnecessary switching cycles.

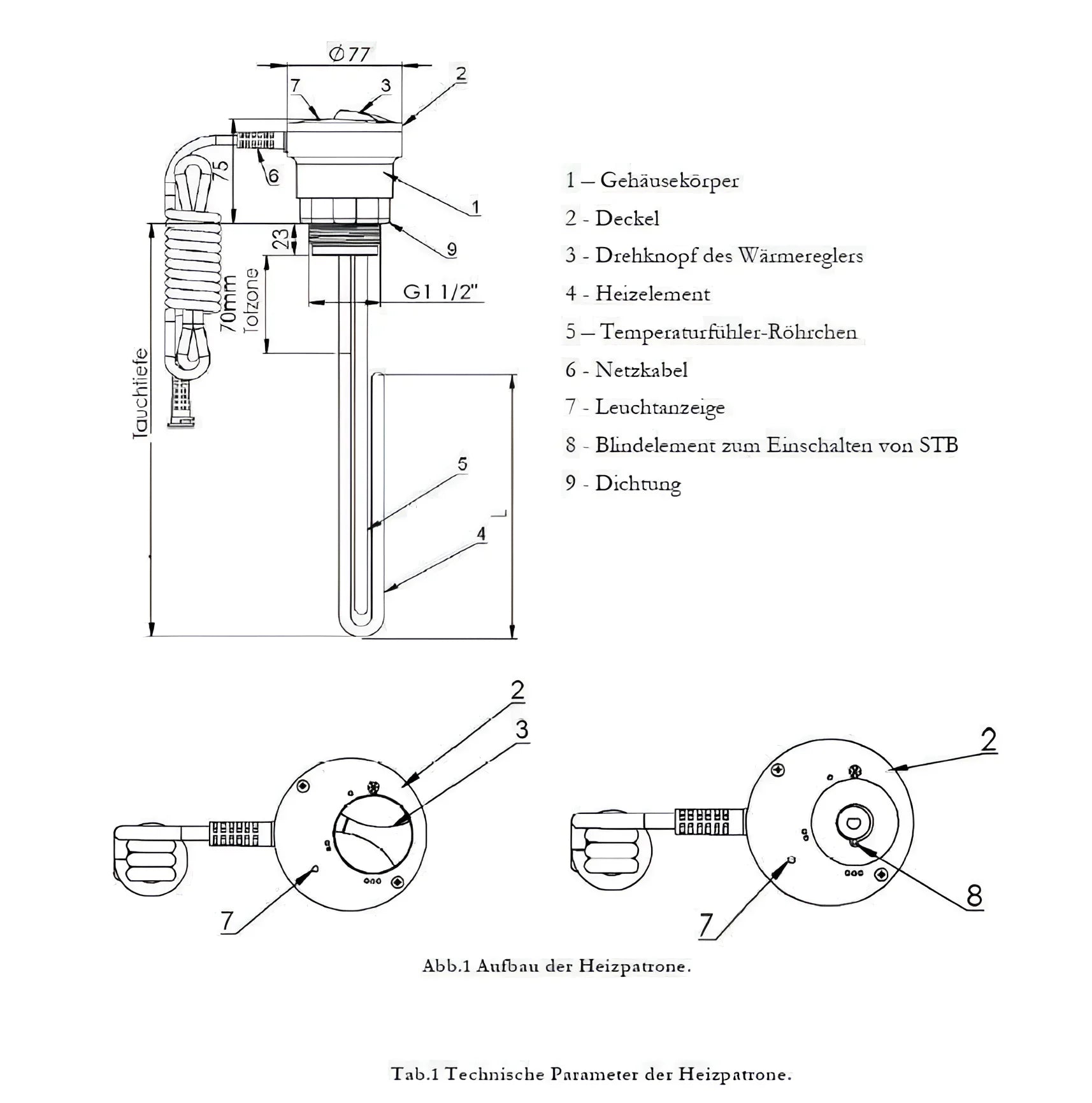

Technical details of the heating element
With a compact installation length of 300 mm and an unheated length of 70 mm, the heating element integrates flexibly into existing systems. It is designed to withstand a maximum operating pressure of 10 bar and is optimally protected against splash water thanks to its IPX4-certified housing.
The integrated thermostat with a safety temperature limiter (active at 93°C) and a frost protection mechanism provides additional safety and energy efficiency. The 1.5-meter-long connection cable with a Schuko plug also enables simple and quick installation in the system.
Areas of application
The hot water tank and the associated heating element are excellently suited for use in private households as well as in commercial applications. They can be used in both can be used in combination with solar systems as well as with solid fuel, pellet, and wood gasification boilers.
Thanks to the versatile connection options and the well-thought-out safety functions, both components represent the ideal solution for providing a constant supply of hot water even in demanding environments.
Conclusion
With the 150-liter hot water tank and the powerful 1.5 kW heating element, you get a well-designed system that meets the highest demands for efficiency and safety. The combination of advanced heating technology, comprehensive corrosion protection, and robust components guarantees a long-term and reliable hot water supply.
The flexible usability in various heating and solar systems, combined with easy integration and operation, makes this system an optimal investment for modern heating installations. It combines innovative technology with user-friendly control and thus guarantees consistently high hot water comfort.
Technical Data

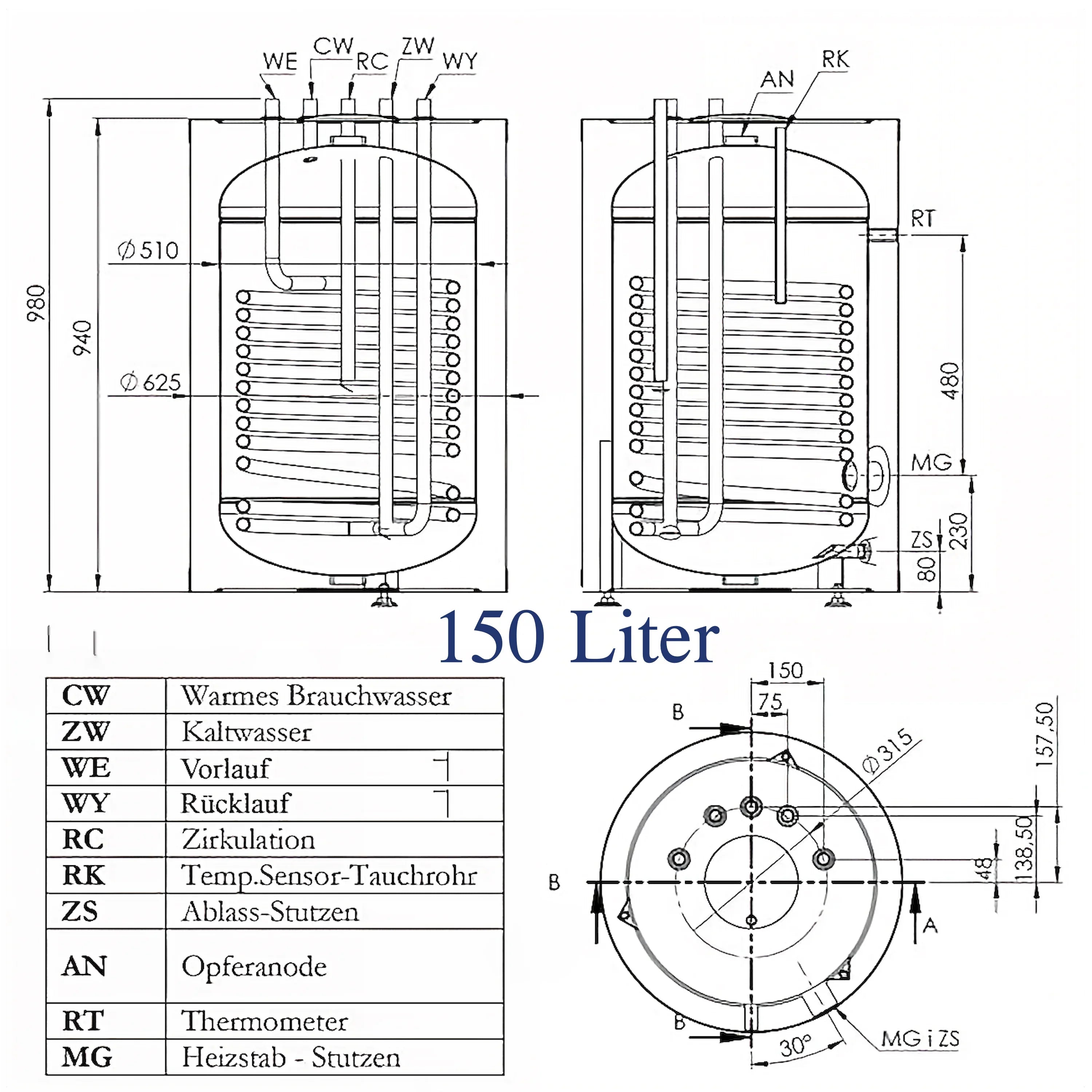

Technical Data Hot Water Tank
- Volume: 150 liters
- Heat exchanger surface area: 1.4 m²
- Heat exchanger content: 6.1 liters
- Connection flow and return heating: 3/4" male thread
- Connection flow and return domestic hot water: 3/4" male thread
- Connection circulation: 3/4" male thread
- Connection magnesium anode: 1 1/4" female thread
- Connection for electric heating: 1 1/2" female thread
- Thermal insulation: polyurethane foam (PUR)
- Max. operating temperature tank 95 °C
- Max. operating pressure tank / heat exchanger: 6 bar
- Max. operating temperature heat exchanger 100 °C

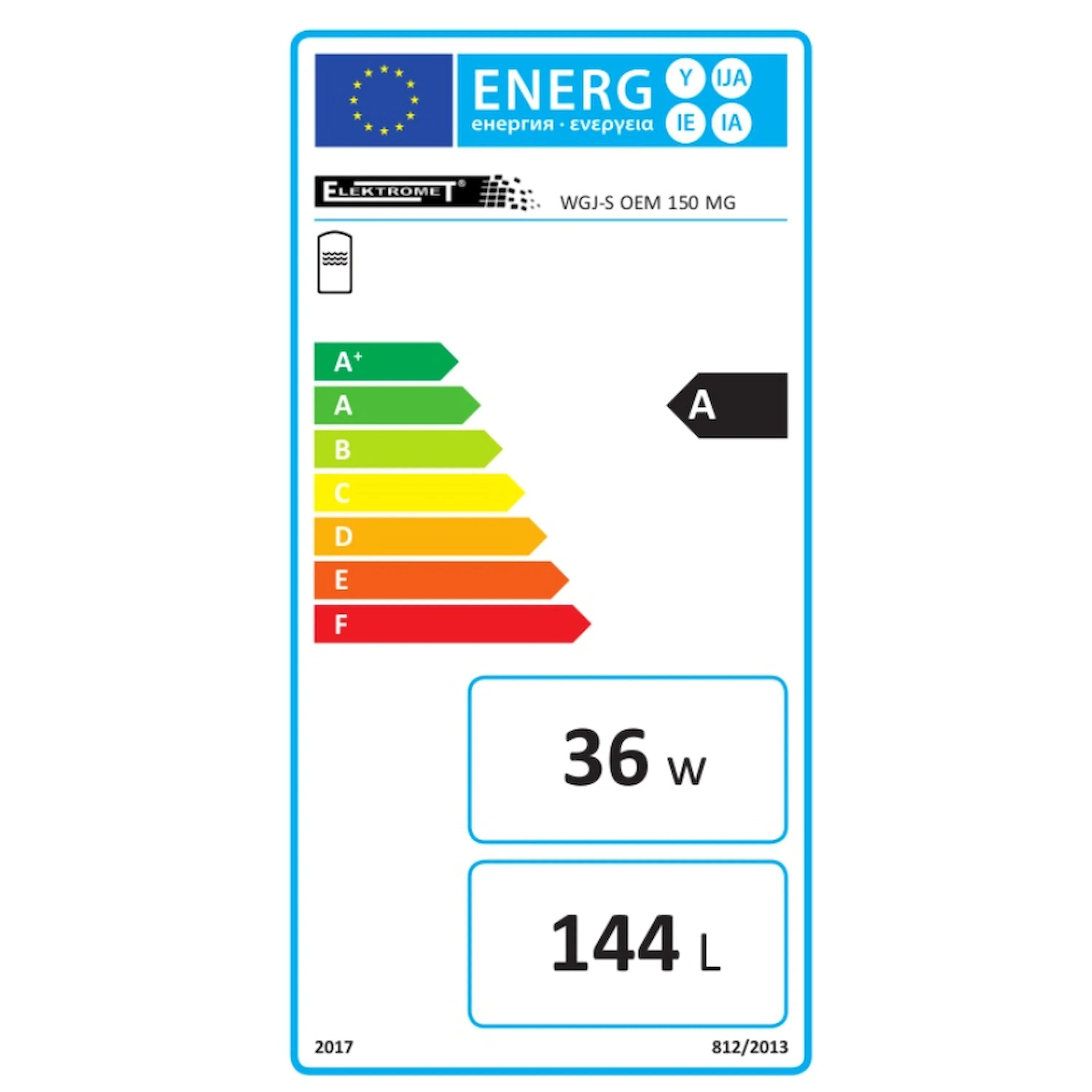

- Heat loss: 36 watts
- Storage tank internal diameter: 510 mm
- Dimensions with insulation (diameter x H): 625 x 980 mm
- Weight (empty): 76 kg
Technical data for heating element
- Heating output: 1.5 kW
- Temperature range: 5-75°C
- Switch-on hysteresis: 7-10°C
- Installation length: 300 mm
- Unheated length: 70 mm
- Safety temperature limiter: 93°C
- Connection: 1 ½" male thread
- Max. operating pressure: 10 bar
- Protection class: IPX4
- Material of heating coil: Alloy 825
- Housing material: plastic, white
- Power supply: 230V/16A, single-phase
- Connection cable: 1.5 meters with Schuko plug
Scope of delivery
- Hot water tank 150 liters
- Heating element 1.5 kW with 1 1/2" male thread
- Installation & Operating Instructions
