Solar Package Evacuated Tube Collector HP22 Flat Roof 14.44 m² – Efficient Energy Generation for Your Home
ENERGY Free directly from the S U N
The solar package with HP22 evacuated tube collectors for flat roofs is the perfect choice for sustainable and environmentally friendly energy supply. With an area of 14.44 m² and state-of-the-art heat pipe technology, the system offers high energy efficiency for domestic hot water preparation and heating support. The possibility of government subsidies also significantly reduces the acquisition costs, making the switch to renewable energy even more attractive.
High-quality materials for durability
The evacuated tube collectors of the HP22 solar package impress with their robust construction and the use of high-quality materials. The vacuum tubes are made of borosilicate glass, which is not only translucent but also extremely resistant. Even under severe weather conditions such as hail, the tubes remain intact thanks to the 2 mm thick wall.
Another quality feature is the collector header made of powder-coated aluminum, which offers optimal protection against corrosion and other environmental influences. The copper inner tubes ensure excellent heat transfer, while the stainless steel frame guarantees stability and durability. This well-thought-out design ensures reliable operation for many years.
Efficiency through innovative heat pipe technology
The heart of the solar package is the modern heat pipe technology. This enables efficient heat transfer via dry connection, which is both safe and easy to maintain. In the event of maintenance, individual vacuum tubes can be replaced easily without having to drain the entire solar circuit – a decisive advantage over conventional systems.
In addition, the system is extremely resistant to stagnation, i.e., when there is no heat draw. The heat pipe technology does not require additional safety mechanisms and ensures high operational safety, even under extreme conditions.
Easy installation on flat roofs
The HP22 solar package's design, specifically tailored for flat roofs, significantly simplifies installation. The scope of delivery includes all necessary mounting components, including a mounting set, roof hooks, and a connection set for the collectors. The individual components are precisely matched to each other, ensuring quick and straightforward installation.
The materials used for the mounting components also meet the highest quality standards. They ensure long-term stability and safe operation of your solar thermal system – regardless of weather conditions.
Coordinated accessories for maximum performance
The solar package includes comprehensive accessories to optimally support the functionality and performance of the system. This includes a solar expansion vessel with a capacity of 35 liters, including a bracket for easy installation. A Sunex solar station (GPS Wilo) and a solar controller ensure intelligent control and efficient energy use.
You will also receive two 20-liter containers of solar fluid, which is necessary for reliable operation. This allows you to commission your system immediately and harness maximum performance from the start.
Certified quality for your comfort
The Sunex evacuated tube collectors are Solarkeymark-certified and thus meet the highest European standards for solar thermal products. This certification confirms not only the excellent quality but also the outstanding performance of the system. You can rely on purchasing a durable product that meets the highest requirements.
Attractive funding for renewable energy
A major advantage of the HP22 solar package is its eligibility for funding through the Federal Funding for Efficient Buildings (BEG EM). Up to 30% of the purchase and installation costs can be covered. Additionally, if additional criteria are met – such as replacing an old heating system – you may receive up to 70% funding.
Take advantage of these financial benefits to make the switch to renewable energy even more economical. In our guide to heating subsidies, you will find all the details and receive support with the application process.
Conclusion: Sustainable energy for a green future
The Solarpaket Röhrenkollektor HP22 for flat roofs is the ideal solution if you want to make your home more environmentally friendly and efficient. With modern technology, robust materials, and the possibility of taking advantage of government subsidies, you benefit twice: from lower operating costs and a future-proof energy system.
Take the step into a sustainable future and choose the well-thought-out all-inclusive package from Sunex. With high-quality evacuated tube collectors, heat pipe technology, and comprehensive accessories, your new solar thermal system will become a reliable partner in your energy supply.

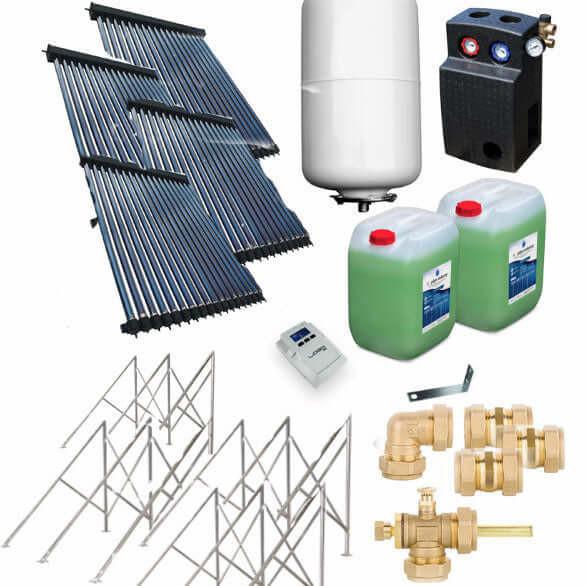

This package includes:

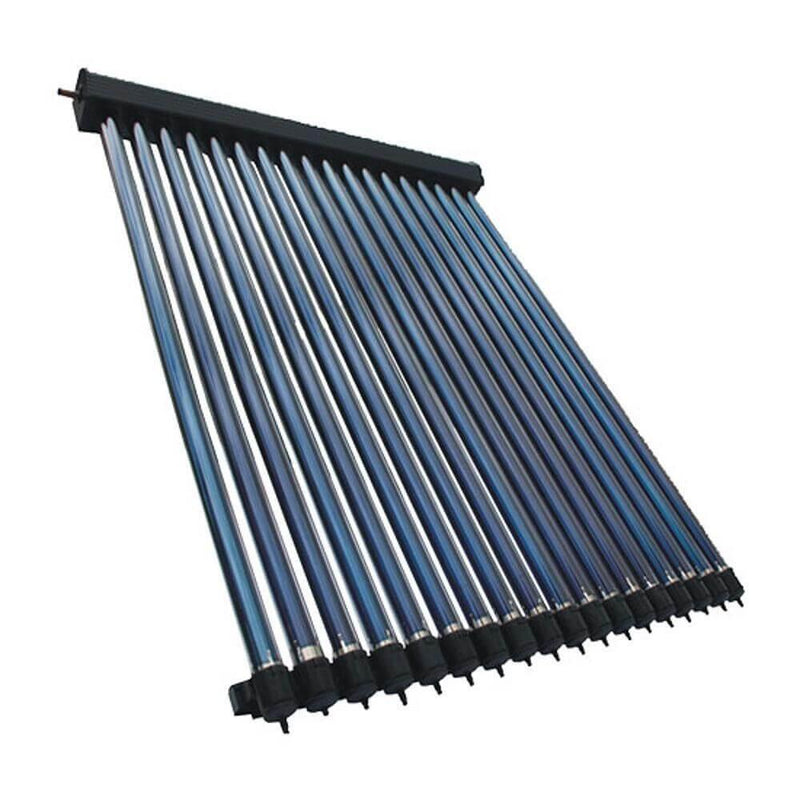

- 4 x HP22 evacuated tube collectors
- Connection set for 4 collectors

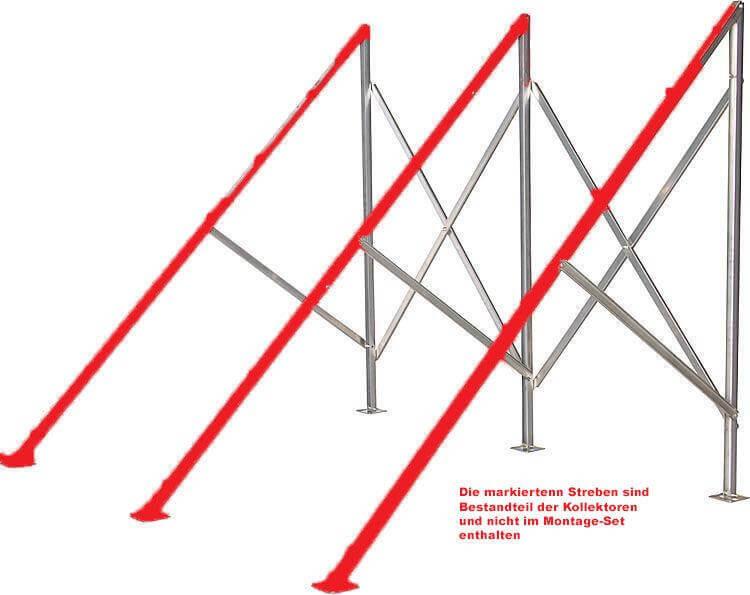

- Mounting set for 4 collectors
- Roof hooks for interlocking tiles

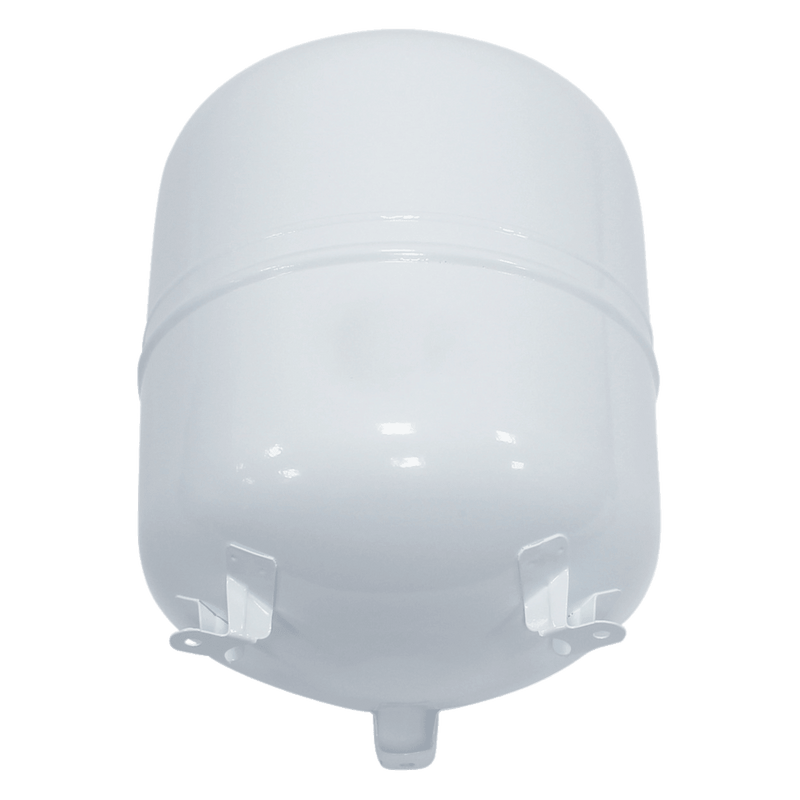

- Solar expansion vessel 35 liters
- Mounting bracket for expansion vessel

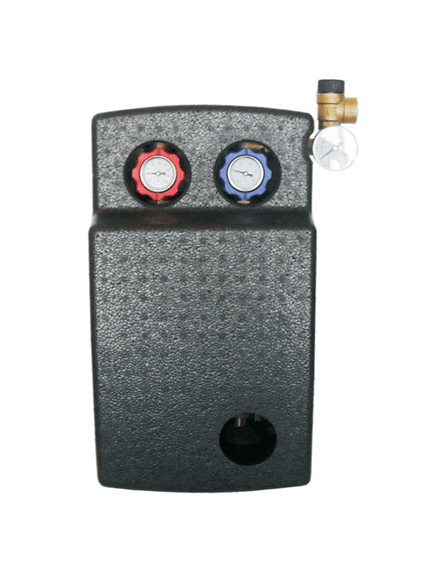

- Sunex solar station GPS Wilo

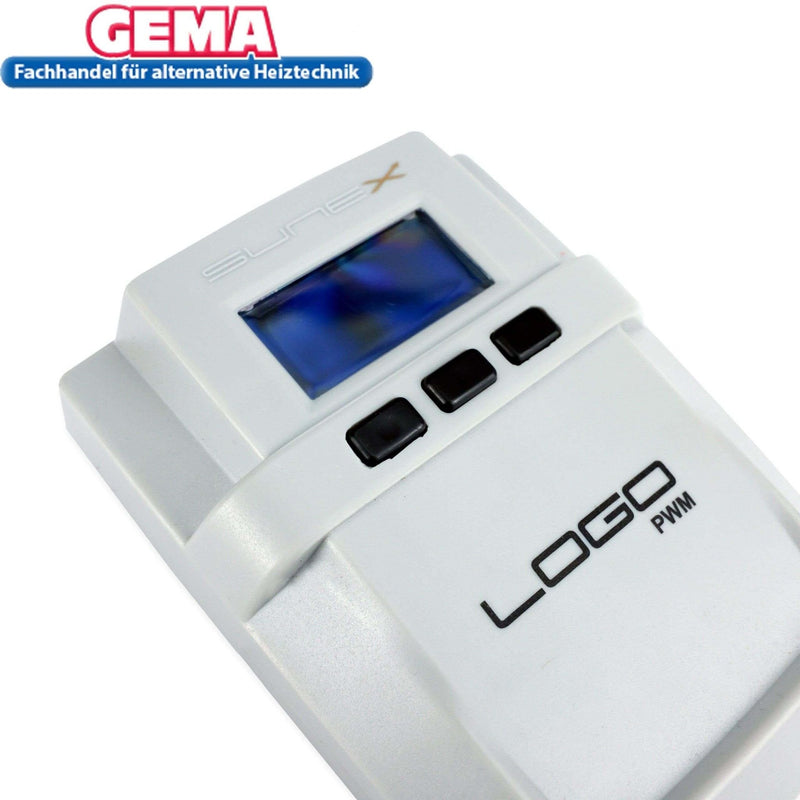

- Sunex solar controller Logo PWM

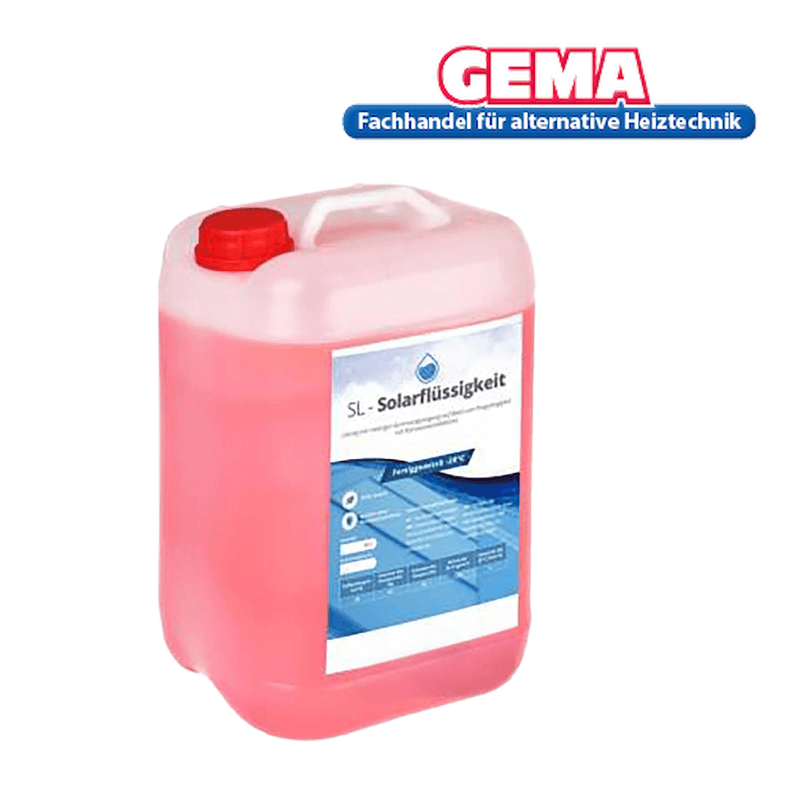

- 2 x 20 liters solar fluid
Download
