Screw-in heating element for efficient liquid heating

Screw-in immersion heaters are an ideal solution for directly heating liquids. Their versatile applications include water heaters, solar thermal systems, buffer tanks, and stainless steel tanks. Thanks to their sophisticated design and high-quality materials, they guarantee reliable heating performance and a long service life.

Robust construction and high-quality materials

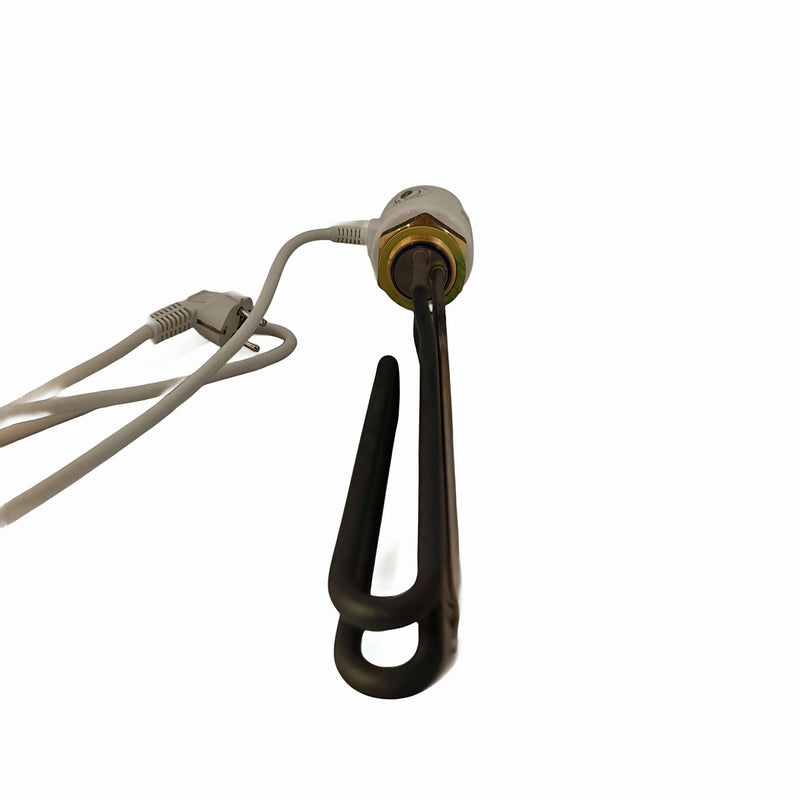

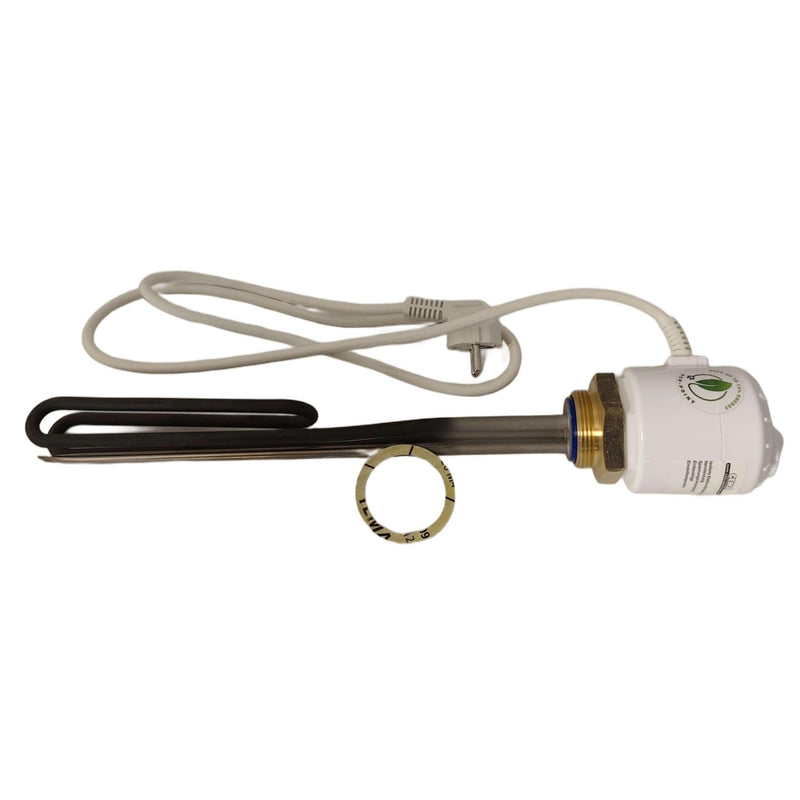

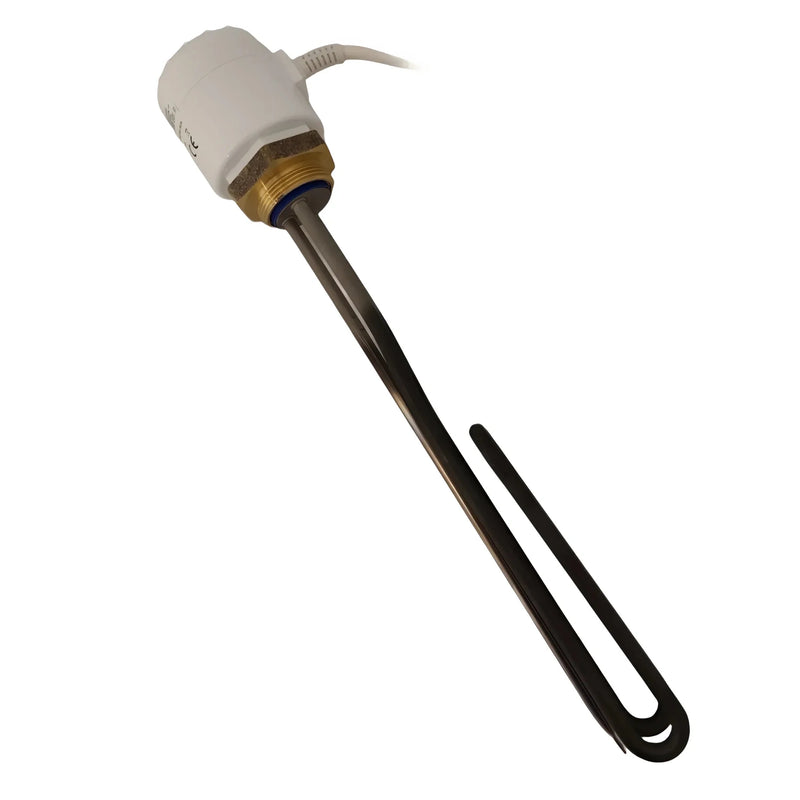

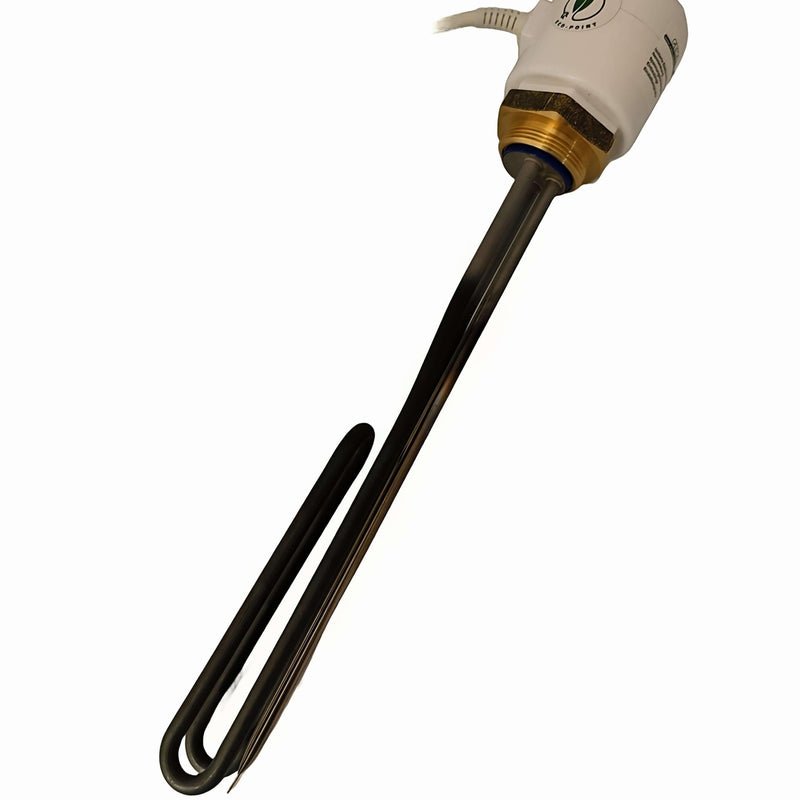

The screw-in immersion heater consists of a robust, tubular heating element with a capillary jacket, mounted in a 1 1/2" threaded head. This design ensures safe and easy installation. The heating element itself is made of Incoloy steel, which offers high resistance to corrosion and chemical influences. This makes the heater ideal for demanding applications and guarantees a long service life, even under intensive use.

Practical plastic housing with adjustable operating temperature

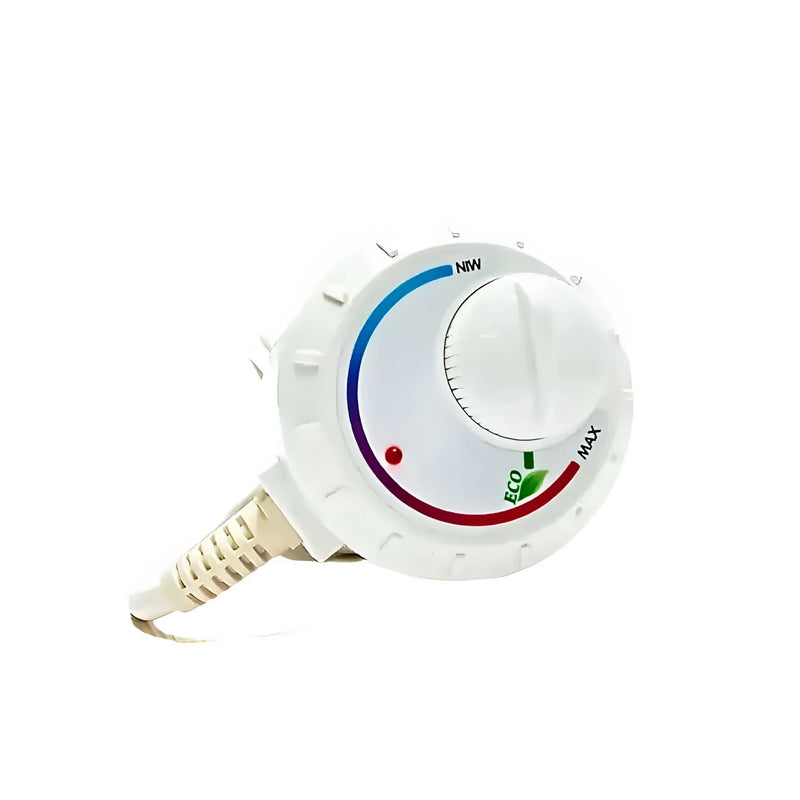

The screw-in heating element features a robust plastic housing that is not only impact-resistant but also protects the electronics. Furthermore, the adjustable operating temperature range of 5 to 70°C allows for precise temperature control. The innovative ECO-POINT function supports optimal temperature setting on the thermostat and ensures efficient energy consumption.

Innovative security features

Safety is paramount with this heater. It features a safety temperature limiter (STB) with a maximum temperature of 87°C. An integrated operating indicator light also displays the current status. These safety features make it particularly reliable and user-friendly.

Easy handling thanks to the integrated power cable

For quick and easy installation, the screw-in heating element is equipped with a 1500 mm long power cable including a plug. This allows for installation without additional electrical components, resulting in significant time savings and increased ease of use.

Meets the highest quality standards

The screw-in heating elements were manufactured in accordance with the latest quality standards PN-EN 60335-1:2012 and LVD 2014/35/EU. This ensures not only a high level of operational reliability but also compliance with all relevant European safety standards.

Versatile use in various applications

Thanks to their reliable heating performance and flexible installation options, these screw-in immersion heaters are suitable for a wide range of applications. Typical applications include:

• Water heaters for private and commercial use.
• Solar power systems that require an additional heat source.
• Buffer storage tanks and storage tanks for heating and domestic hot water.
• Stainless steel tanks in the food and chemical industries.

Their versatile applications make them an excellent choice for the efficient heating of liquids in a wide variety of applications.

Technical data

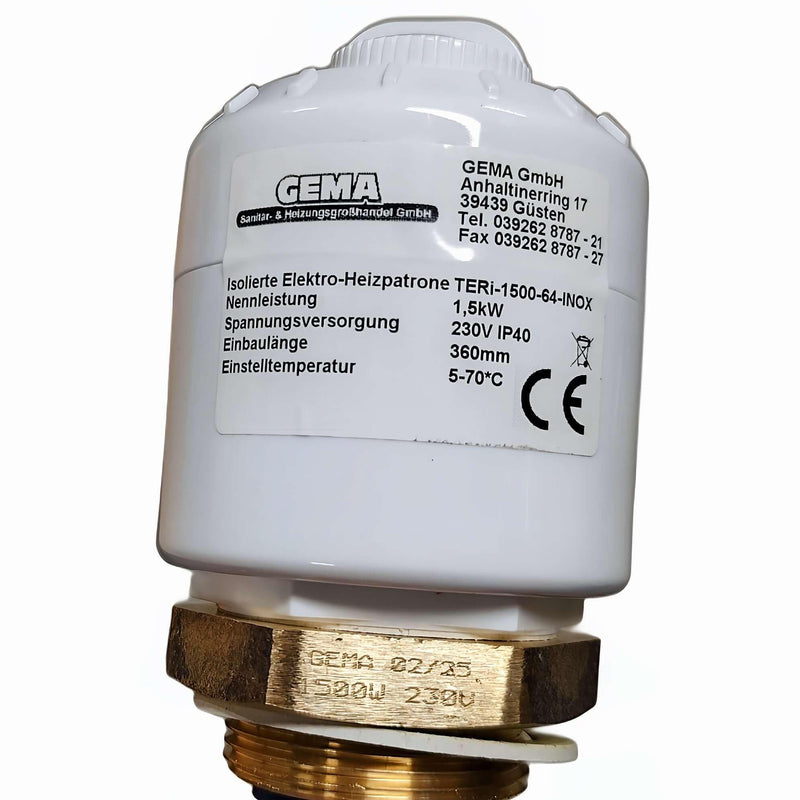

Technical data 1.5 kW

• Power output of 1500 W
• Supply voltage 230 V
• Immersion length 360 mm
• unheated zone 80 mm
• Net weight 0.98 kg
• standardized 1 1/2" threaded connection

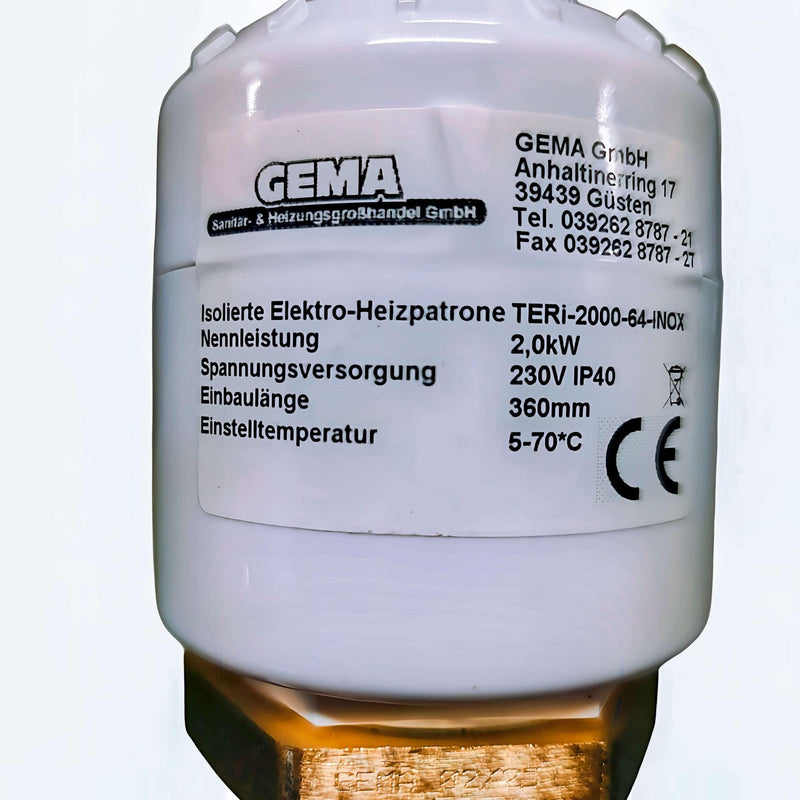

Technical data 2 kW

• Power output of 2000 W,
• Supply voltage 230 V
• Immersion length 360 mm
• unheated zone 80 mm
• Net weight 1 kg
• standardized 1 1/2" threaded connection

Scope of delivery

• 1 x incoloy heating element with 1.5 m cable
• Assembly instructions
