Keyon split air conditioning YAA1FB6 with frost protection function

by Sinclair

SKU SOH-12BIK

744,99 € - 1.525,87 €

843,72 €

744,99 € - 1.525,87 €

843,72 €

Availability:

Low stock

Availability:

Low stock

Availability:

Low stock

Availability:

Low stock

Die Produktbeschreibung wird aktuell ergänzt. Bei Fragen zu Einsatzbereich, Auslegung oder Kompatibilität hilft dir unser Fachteam gerne weiter.

Fachhandel für Heiztechnik

Technische Beratung für Heiztechnik & Systemkomponenten
Sichere Zahlung
Paket- oder Speditionsversand je nach Produktart

Quantity

Description

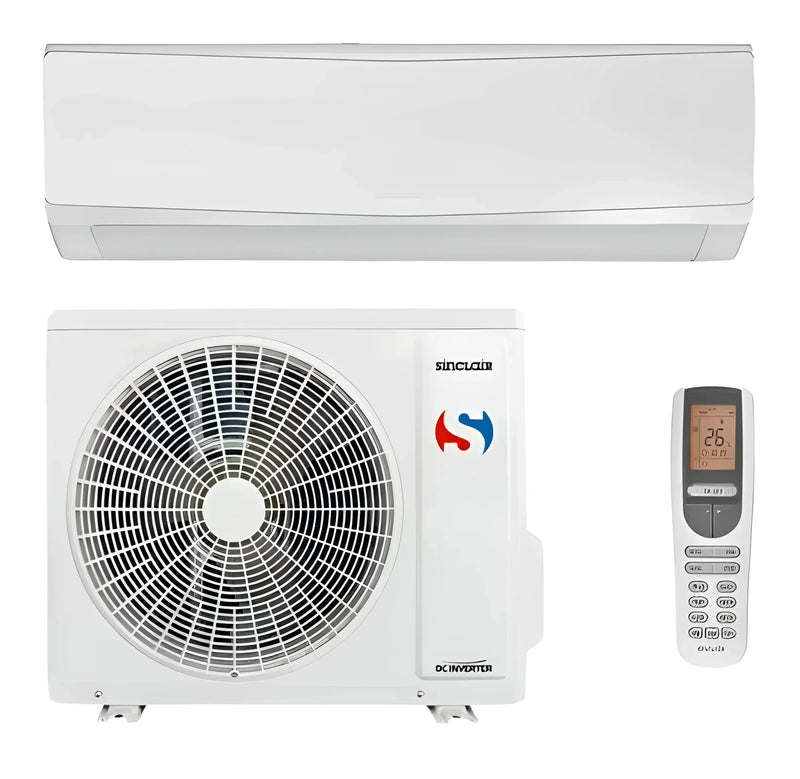

Keyon Series Air Conditioner

Highlights of the air conditioning system

Energy efficiency class A++/A+
“I FEEL” function
"8 °C Frost Protection" function

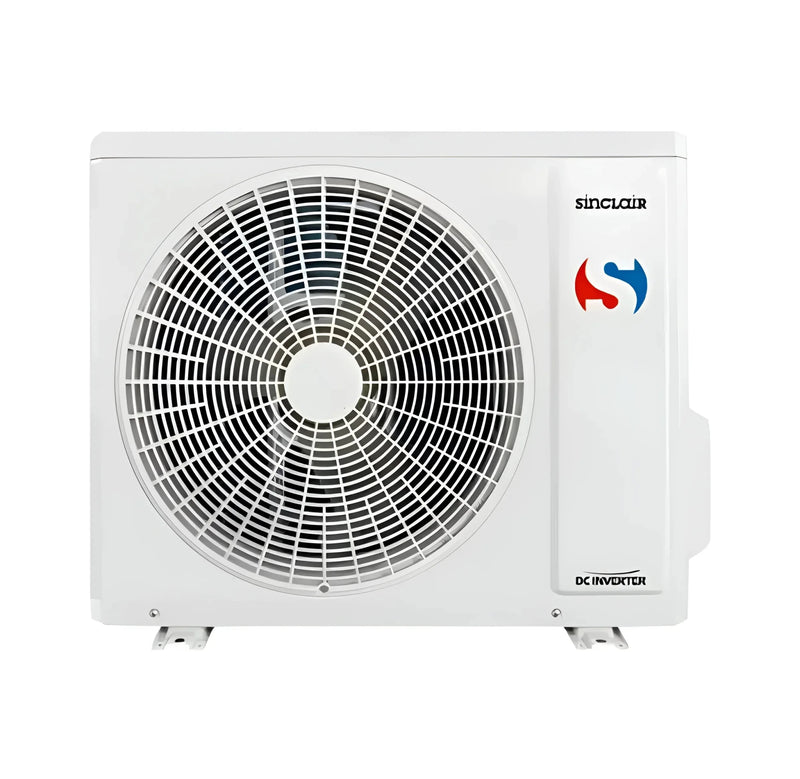

New design of the outdoor unit

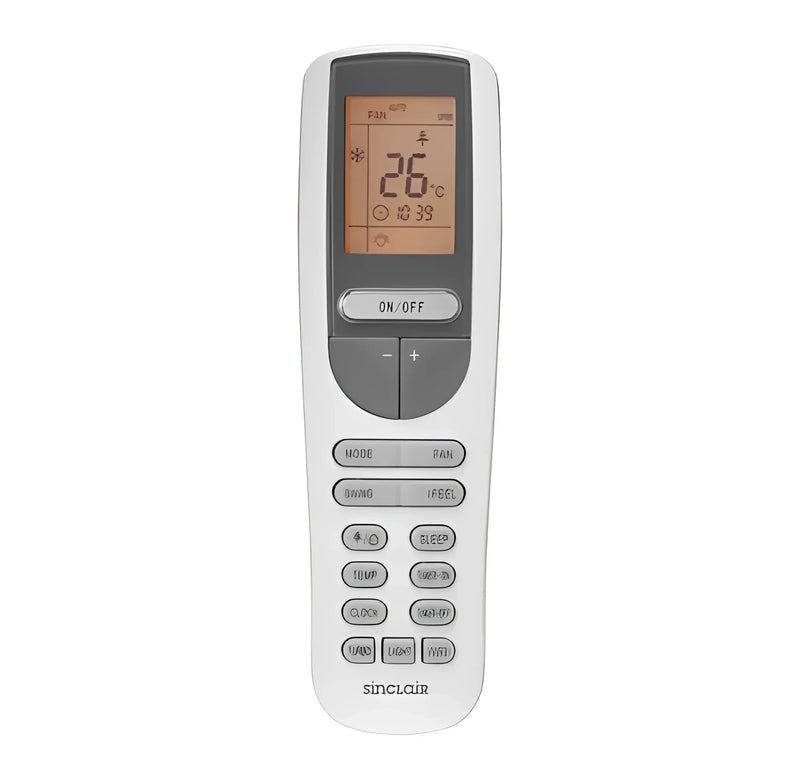

Includes infrared remote control
Hidden display
Includes cold plasma ionizer
Integrated WiFi control
Lamella movements:

- 2.7 kW and 3.2 kW horizontal
- 4.6 kW and 6.2 kW horizontal
vertically adjustable

OPTIONAL: MODBUS control via SWC-02 or SWC-04 (except SIH-09BIK) is possible

The Keyon air conditioner is a true all-rounder among SINCLAIR split wall units.

Thanks to a wide range of features and an attractive price/performance ratio, the series is becoming a sales hit.

Keyon Series Air Conditioner

The hidden display, which can be switched off if desired, always keeps you informed about the operating mode and target temperature.

Operation via smartphone is also possible after a one-time setup, giving you full control over your air conditioning system even when you're on the go.

The built-in cold plasma ionizer cleans your room air and creates a comfortable indoor climate.

Keyon Series Air Conditioner

The included infrared remote control further enhances the comfort of the Keyon series air conditioner, measuring, for example, the room temperature where you are and adjusting the output accordingly (the "I FEEL" function). The "8°C Frost Protection" function prevents your rooms from cooling down too much in winter; if the room temperature drops below 8°C, the unit activates an efficient heating mode.

Technical specifications: Keyon series air conditioner

Model			SIH-09BIK	SIH-12BIK	SIH-18BIK	SIH-24BIK
			SOH-09BIK2	SOH-12BIK2	SOH-18BIK	SOH-24BIK
Performance	Cool	kW	2.7 (0.6 - 3.4)	3.2 (0.9 - 3.7)	4.6 (1.0 - 5.3)	6.2 (1.8 - 6.4)
	Heat	kW	2.8 (0.6 - 3.7)	3.4 (0.9 -4.1)	5.2 (1.0 - 5.7)	6.5 (1.6 - 6.6)
Voltage/Frequency		V/Ph/Hz	220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50
Power consumption	Cool	kW	0.74	0.99	1.36	1.77
	Heat	kW	0.7	0.92	1.34	1.65
Max. power consumption		kW	1.5	1.5	1.9	2.2
Max.Operating current		A	7.5	7.5	9	10
SEER/SCOP			6.6/4.2	6.5/4.1	6.4/4.0	6.8 /4.0
Energy efficiency class	Cooling/Heating		A++/(A+/A+++/B)	A++/(A+/A+++/-)	A++/(A+/A+++/-)	A++/(A+/A+++/-)
Eta value	Cooling/Heating		261/165	257/161	253/157	241/157
Air volume flow	Inside	m³/h	550/500/430/290	680/560/450/390	850/750/650/550	1100/950/750/650
	Outside	m³/h	1950	1950	1950	2800
Sound pressure level at 1 m	IG/AG	dB(A)	40/38/34/23/51	41/36/32/23/52	48/41/37/31/53	48/44/40/35/58
Sound power level	IG/AG	dB(A)	55/48/44/36/62	57/46/42/37/64	58/51/47/34/63	61/58/53/49/67
Dehumidify		l/h	1.4	1.4	1.8	1.8
Refrigerant/Fill quantity	Type/Quantity	kg/Eq. CO2	R32/0.53/0.36	R32/0.57/0.38	R32/0.75/0.51	R32/1.30/0.88
Pipe diameter	Cool	inch/mm	1/4/6.0	1/4/6.0	1/4/6.0	1/4/6.0
	Heat	inch/mm	3/8/9.5	3/8/9.5	3/8/9.5	1/2/12.0
Min./Max. pipe length		m	3/15	3/15	3/25	3/25
Max.altitude difference		m	10	10	10	10
Pre-filled pipe length		m	5	5	5	5
Additional amount of cold		g/m	16	16	16	16
Dimensions (H x W x D)	Inside	mm	251x770x190	289x849x215	300x972x225	325x1081x248
	Outside	mm	550x732x330	550x732x330	550x732x330	555x873x376
Net weight	Inside	kg	8.5	10.5	13.5	16.5
	Outside	kg	25	25	26.5	36.5
Target temperature range		°C	16-30	16-30	16-30	16-30
Operating temperature range	Cooling/Heating	°C	-15~43/-15~24	-15~43/-15~24	-15~43/-15~24	-15~43/-15~24
Includes remote control			INFRARED	INFRARED	INFRARED	INFRARED
Includes Wi-Fi module			YAA1FB6	YAA1FB6	YAA1FB6	YAA1FB6
Includes catechin filter and activated carbon filter			SAF-OPWC4 + -A4	SAF-OPWC4 + -A4	SAF-OPWC4 + -A4	SAF-OPWC4 + -A4

*Technical changes reserved | Images may differ
