Name: Atmos KC35S Coal Gasifier 35 kW
Brand: Atmos
SKU: 01.12.35
Price: 5025.34 EUR
Availability: InStock

ATMOS KC 35 S Kohlevergaser 35 kW – Heizkessel für Braunkohlebriketts - GEMA Shop

Highlights

Nennleistung	35,0 kW
Wirkungsgrad	87,6 %
Energieeffizienzklasse	C
Maximale Scheitholzlänge	330 mm
Kesselklasse	Class 5
Rauchrohranschluss	150 mm

100 l fuel shaft for manually fed solid fuel operation

Ceramic-lined afterburner chamber for controlled combustion

Cooling loop against overheating as a safety-relevant feature

Control panel with thermometer, boiler thermostat, flue gas thermostat and safety thermostat

Scope of delivery includes cleaning accessories, filling valve, ash container and Honeywell FR 124 draft regulator

Atmos KC35S Coal Gasifier 35 kW

by Atmos

SKU 01.12.35

5.025,34 € - 5.025,34 €

5.025,34 €

5.025,34 € - 5.025,34 €

5.025,34 €

Energieeffizienz C

Availability:

Low stock

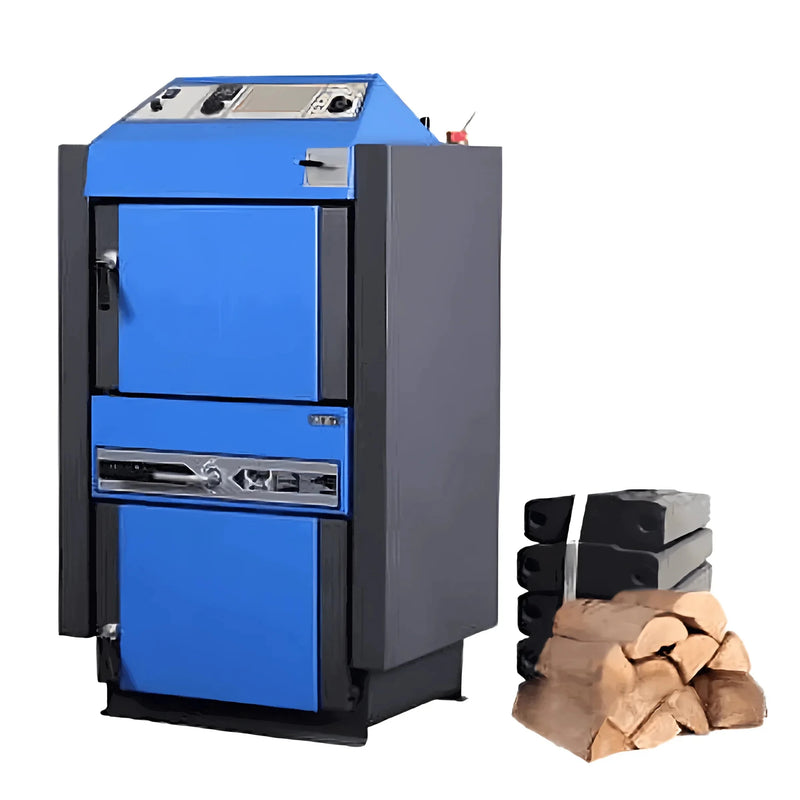

The Atmos KC 35 S is a coal gasifier with a boiler heat output of 35 kW for heating systems using brown coal briquettes as the main fuel. With generator gasification, an extraction fan, and provision for buffer tank integration, it is designed for classic solid fuel operation in appropriately planned central heating systems.

Wichtigste Vorteile

35 kW boiler heat output for appropriately designed heating systems

Main fuel: lignite briquettes; log wood can be used as alternative fuel

Downdraft gasification with extraction fan for controlled solid fuel operation

Fachhandel für Heiztechnik

Technische Beratung für Heiztechnik & Systemkomponenten
Sichere Zahlung
Paket- oder Speditionsversand je nach Produktart

Description

Product Overview & Application

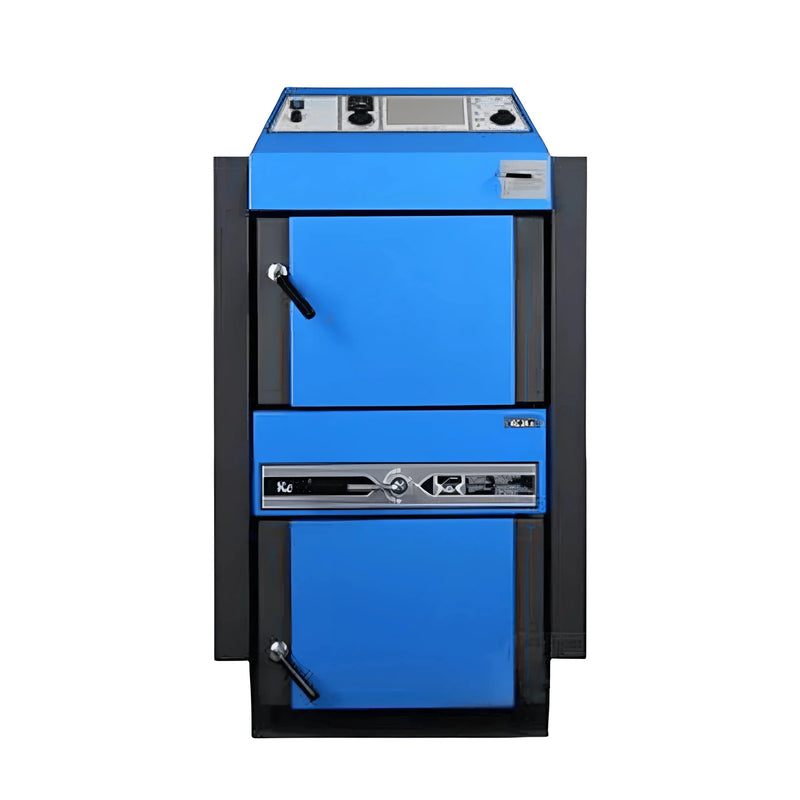

The Atmos KC 35 S coal gasifier is a manually fed hot water boiler with 35 kW rated heat output for heating systems designed to use lignite briquettes as the primary fuel. It is suitable for buildings with a corresponding heat demand and is typically integrated into a water-based central heating system with a buffer tank.

Dry split logs can be used as an alternative fuel. The boiler output, chimney, return temperature boost, and buffer tank should always be sized appropriately for the system.

Technology & Equipment

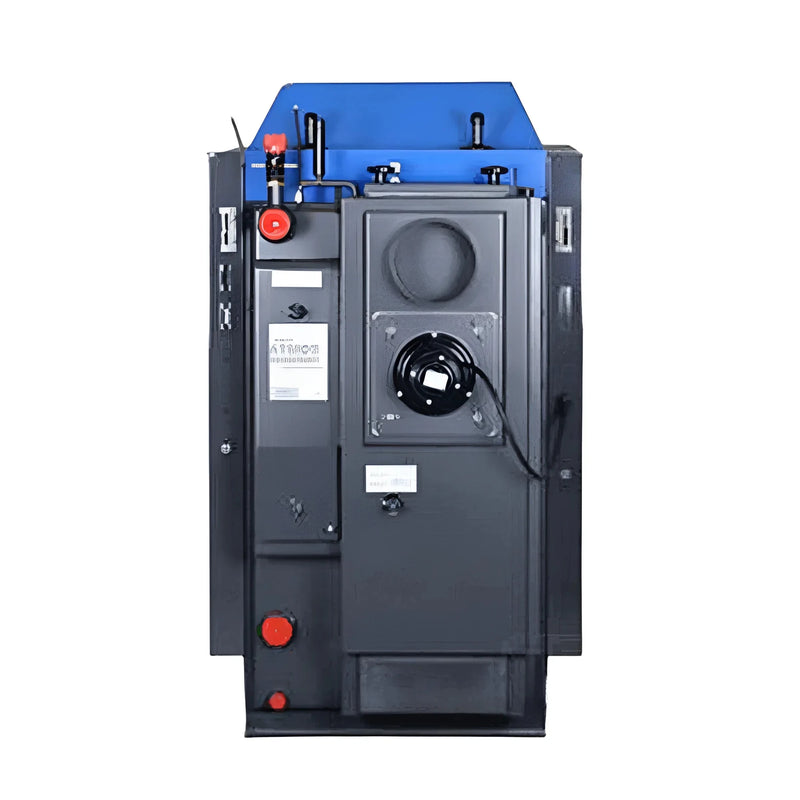

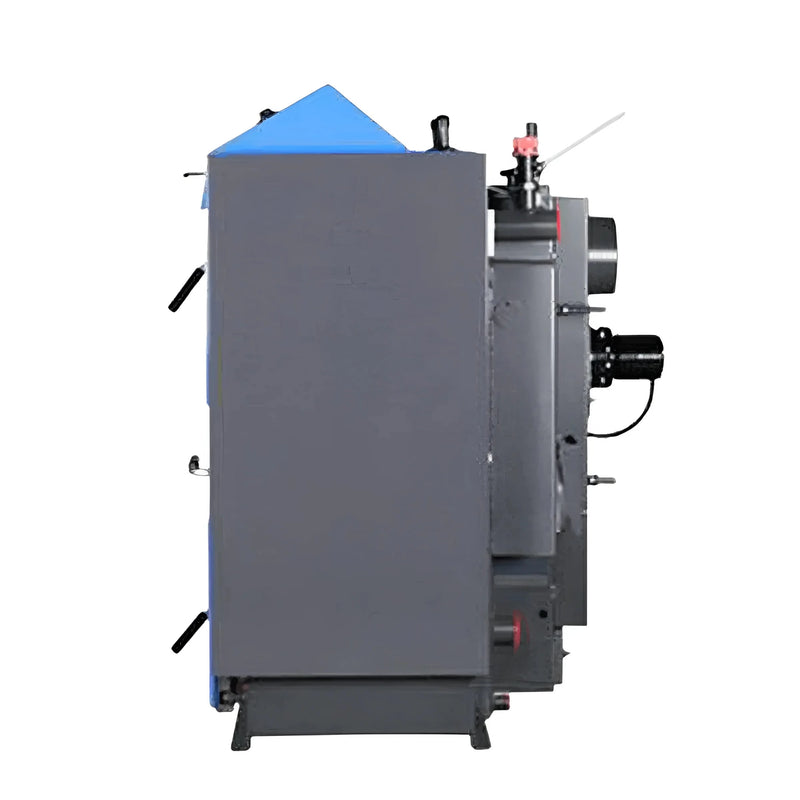

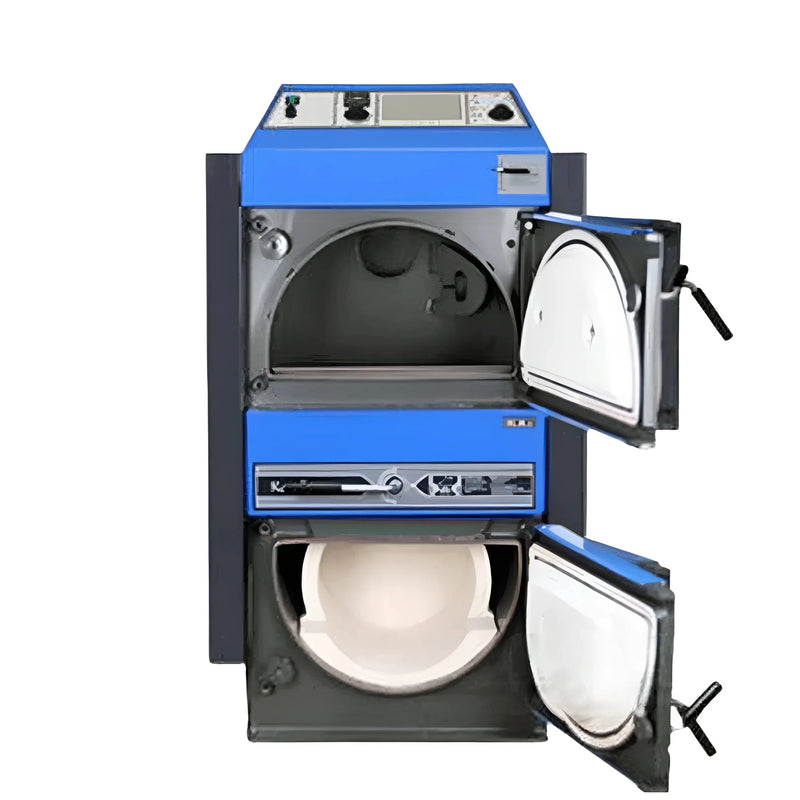

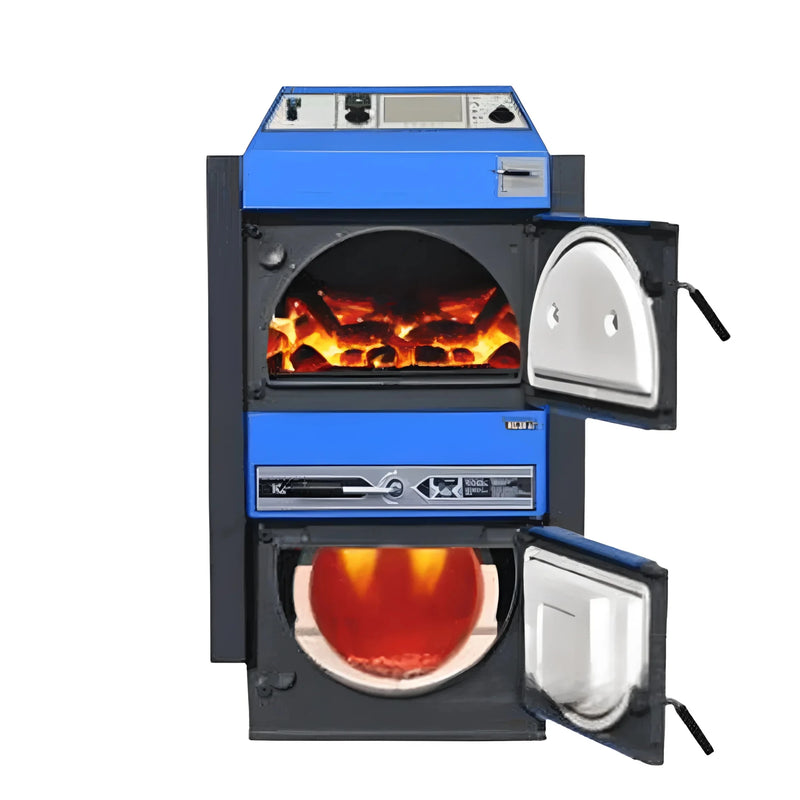

The boiler operates on the principle of downdraft gasification with an induced draft fan. The boiler casing is made of welded steel sheets, the lower secondary combustion chamber is lined with ceramic, and the air supply is managed via primary and secondary air inlets.

Standard equipment includes an electromechanical control unit, a Honeywell FR 124 draft regulator, a boiler thermostat, a flue gas thermostat, a safety thermostat, and a cooling coil to prevent overheating. The rotating grate mechanism supports operation with coal and wood as an alternative fuel.

Everyday Advantages

The Atmos KC 35 S is designed for practical, robust heating operation with manually fed solid fuel. The induced draft fan supports the combustion process and reduces smoke development in the operating area when refueling.

The combination of a ceramic-lined combustion chamber, preheated air supply, and mechanical grate technology makes this boiler appealing to operators seeking a classic solid fuel boiler with a clear technical design.

System Integration & Compatibility

Operation requires integration with a return temperature boost system to achieve the necessary return water temperature. The boiler outlet temperature during operation ranges from 80 to 90 °C.

Installation with a buffer tank is intended for system operation. Additionally, chimney draft, flue gas routing, combustion air supply, and safety components must be planned and executed to match the heating system.

Technical Specifications at a Glance

An overview of the key technical data for the Atmos KC 35 S.

Rated Output	35 kW
Fuel	Lignite briquettes
Combustion Technology	Downdraft gasification with induced draft fan
Efficiency	90.3 %
Energy Efficiency Class	C
Max. Flow Temperature	90 °C
Max. Operating Pressure	2.5 bar
Log Length	330 mm
Boiler Class	5
Draft Requirement	24 Pa
Flue Gas Temperature	209 °C
Flue Pipe Connection	150/152 mm
Safety Heat Exchanger	Cooling coil to prevent overheating included
Buffer Tank Recommended	Yes
Height	1435 mm
Width	675 mm
Depth	758 mm
Voltage	230 V
Frequency	50 Hz
Power Consumption	50 W

Installation

Installation is carried out as part of a water-based heating system with a suitable return temperature boost, flue gas routing, combustion air supply, and safety equipment. The boiler is intended for placement in a suitable boiler room and requires coordinated integration with the chimney, buffer tank, and heating circuit.

Notes

The primary fuel is lignite briquettes. Dry split logs can be used as an alternative fuel. For consistently clean operation, fuel quality, chimney draft, return water temperature, regular cleaning, and professional commissioning are crucial.

Scope of Delivery

Atmos KC 35 S coal gasifier
Steel brush with accessories
Poker
Filling valve
Operating and maintenance manual
Honeywell FR 124 draft regulator
Ash container

Technische Daten

Hersteller	Atmos
Produkttyp	Coal gasifier
Modell	KC35S
MPN / Herstellernummer	01.12.36
GTIN / EAN	8595183306343
Förderstatus	not eligible for funding
Nennleistung	35.0 kW
Brennstoff	Kohle
Verbrennungstechnik	Coal gasifier
Wirkungsgrad	87.6 %
Energieeffizienzklasse	C
Max. Vorlauftemperatur	65.0 °C
Max. Betriebsdruck	2.5 bar
Max. Scheitholzlänge	330 mm
Kesselklasse	Class 5
Zugbedarf	24 Pa
Abgastemperatur	219 °C
Rauchrohranschluss	150 mm
Empfohlenes Puffervolumen	2000 l
Höhe	1435 mm
Breite	758 mm
Tiefe	675 mm
