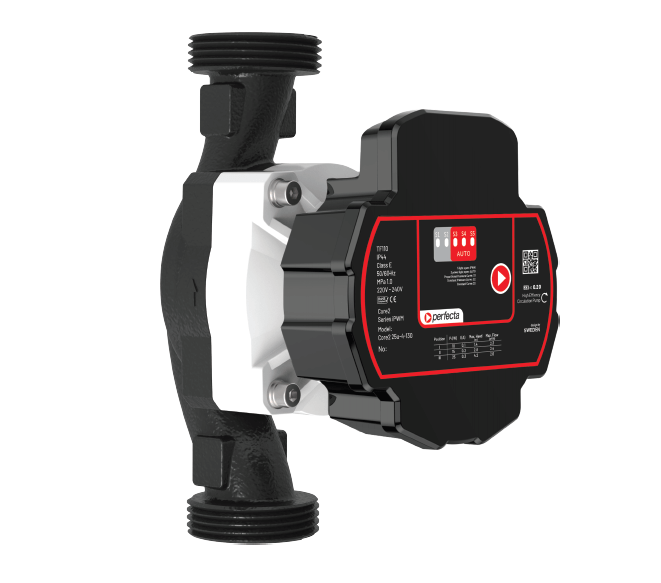

Solar pump Perfecta Core2 15U-8-130 circulation pump for solar systems
Solar pump Perfecta Core2 15U-8-130 PWM: Innovative solution for your circulation systems
Product description
The Perfecta Core2 15U-8-130 PWM solar pump impresses with its innovative technology and versatile application possibilities. Featuring a permanent magnet injection molded plastic motor and intelligent frequency control, it offers maximum efficiency and easy integration into various applications.
Thanks to its compact design and easy installation, this pump is ideal for hot water heating, solar systems, industrial circulation systems, and refrigeration and air conditioning applications. The integrated operating mode ensures visual and efficient operation, optimally regulating fluid flow.
Areas of use and applications
The Perfecta Core2 solar pump is ideal for use in all types of hot water heating systems, air conditioning systems, and industrial circulation systems. The pump also proves to be a reliable solution for cooling water circulation and solar systems.
Thanks to its versatile operating modes and easy integration, it can be used in both residential and commercial applications. With the ability to visually display operation, you always have an overview of the system status.
Main features
The pump features a low EEI value (EEI≤0.20), indicating excellent energy efficiency. Frequency control enables precise control in various modes, including proportional pressure mode, constant pressure mode, constant speed mode, and automatic adjustment in AUTO mode.
An optional external PWM controller is available, providing additional flexibility. The device operates quietly and remains reliable even at low temperatures, increasing comfort and safety during operation.
Technical information
The solar pump is designed for fluid temperatures from 2°C to 110°C and ambient temperatures from 0°C to +40°C. The maximum system pressure is 10 bar, while the IP44 protection level provides reliable safety.
With a rated voltage range of 220V to 240V at 50Hz and insulation class E, the pump is suitable for a wide range of applications. It is particularly important to note that the properties of the fluid to be pumped must be clean and free of solids and mineral oils to ensure optimal functionality. Installation is carried out with the motor shaft held horizontally.
Technical data
- Installation length 130 mm
- Head 8 m
- Connection: 20 mm G1"
- Liquid temperature ： 2℃ ～ 110℃
- Ambient temperature ： 0 ～ +40℃
- Maximum system pressure: 10 bar
- Protection level: IP44
- Rated voltage/frequency: 220V～240V/50Hz
- Max. flow rate: 2.9 m³/h
Scope of delivery
- Perfecta Core2 15u-8-130 solar pump
- Operating instructions
