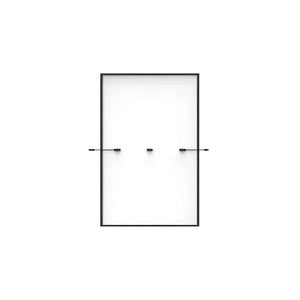

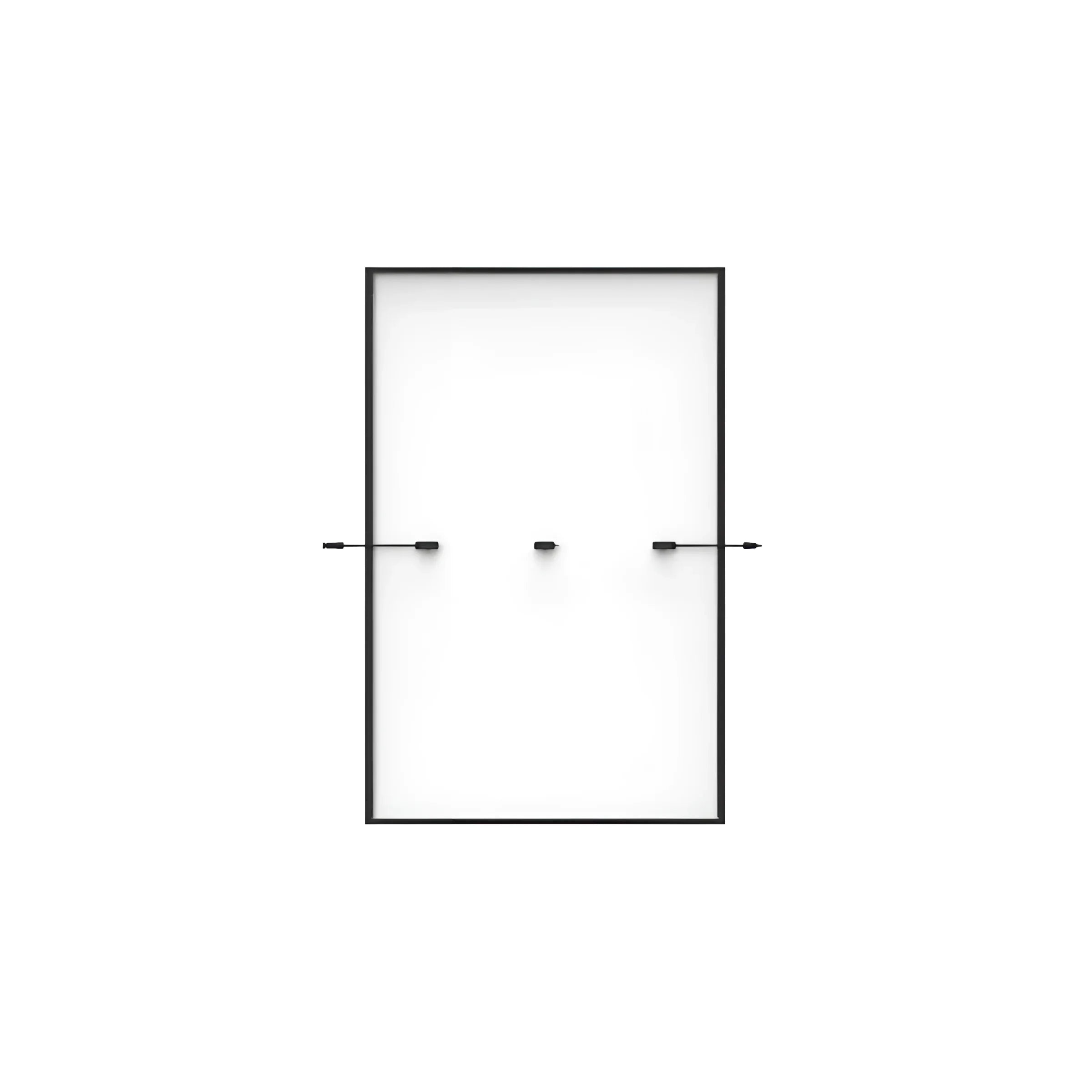

PV module 440 WP Trina Vertex S+ TSM-NEG9R.28/440 (palette)
Provider:
Tepto
inkl. MwSt. / zzgl. Versand
Guaranteed safe checkout
PV module 440 WP Trina Vertex S+ TSM-NEG9R.28/440 (palette)
PV module 440 Wp Trina Vertex S+ TSM-NEG9R.28/440 (pallet)
Trina Vertex S+ TSM-NEG9R.28/440Wp Monofacial Glass-Glass Black Frame (Palette)
Small size, big performance
- Up to 440 W peak power, 22.0 % module efficiency with
- High-density cell interconnect technology
- Multi-busbar technology for more absorption,
- lower series resistance, improved current dissipation and increased reliability
- Lower installation costs with increased performance and efficiency
Double glazing for maximum reliability
- Excellent resistance to fire and harsh environmental conditions
- 5,400 Pa shear load and 4,000 Pa wind load (test loads)
Universal solution for residential and commercial roofs
- High compatibility with available inverters,
- Optimizers and assembly systems
- Easy handling due to perfect size and low weight.
- Optimized transport costs
- Flexible installation solutions for system use

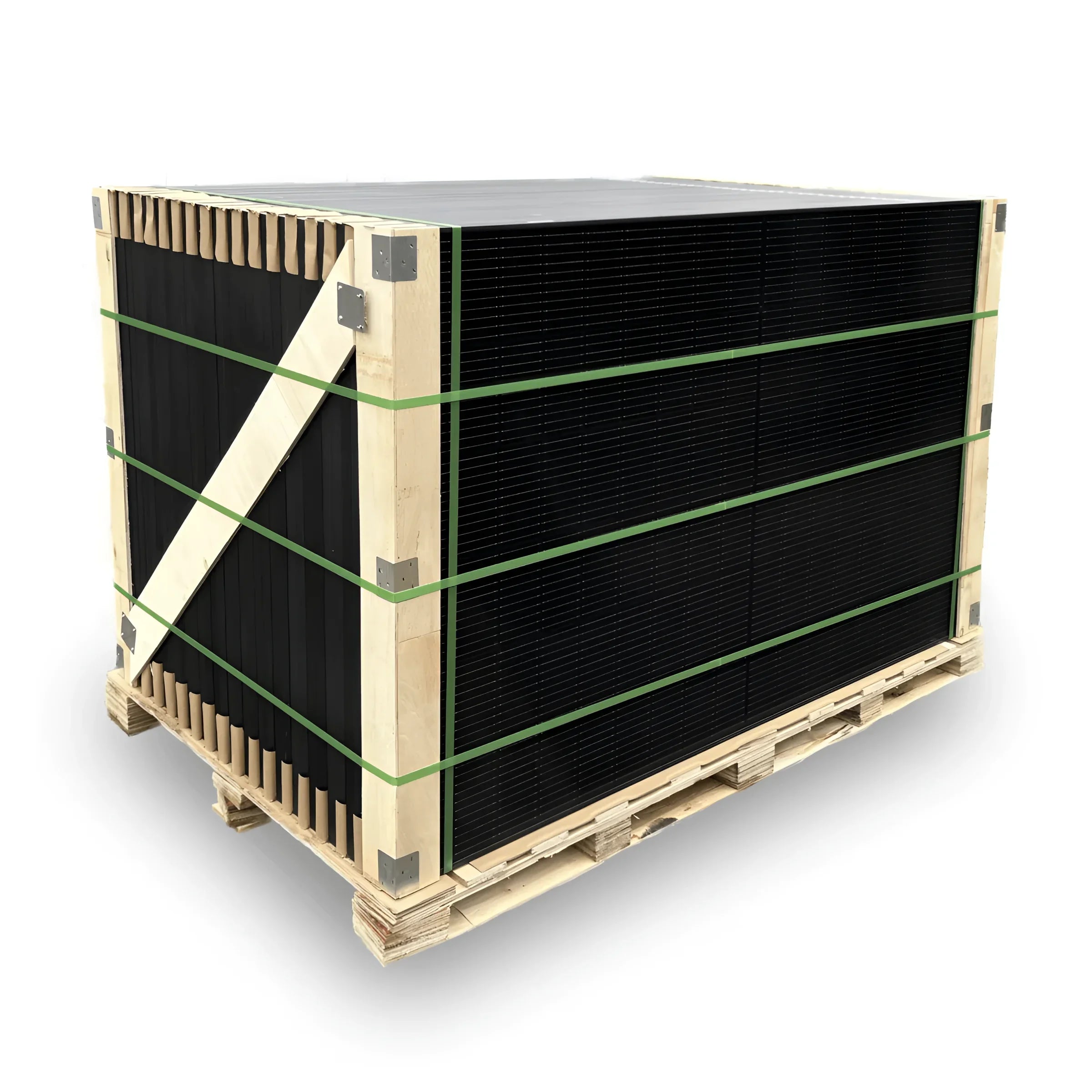

Pallet dimensions LxWxH 180x116x116
| Product name: | TSM-NEG9R.28 |
|---|---|
| Module efficiency: | 22.0% |
| Number of cells: | 144 |
| Cell type: | monocrystalline |
| Cable length: | 1100 mm (+)/1100 mm (-) |
| Plug-in system: | MC4-EVO2 |
| Back: | Glass (white) |
| Frame color: | black |
| Frame height: | 30 mm |
| Module width: | 1134 mm |
| Module length: | 1762 mm |
| Pressure load front: | 5400 pa |
| Pressure load on the back: | 4000 pa |
| Performance tolerance (positive): | 0-5 Wp |
Technical data: PV module 440 Wp Trina Vertex S+ TSM-NEG9R.28/440 (pallet)
| solar cells | Monocrystalline |
|---|---|
| Cell arrangement | 144 cells |
| Module dimensions | 1,762×1,134×30 mm |
| Weight | 21.8 kg |
| Glass | 1.6 mm, highly transparent, anti-reflective coated heat-tempered glass |
| back | 1.6 mm, heat-tempered glass |
| Encapsulation material | EVA/POE |
| Frame | 30 mm anodized aluminum alloy, black |
| Junction box | IP68 |
| Cable | Photovoltaic cable: 4.0 mm² |
| Landscape format: 1,100/1,100 mm | |
| Portrait format: 280/350 mm* | |
| Plug | TS4/MC4 EVO2* |
